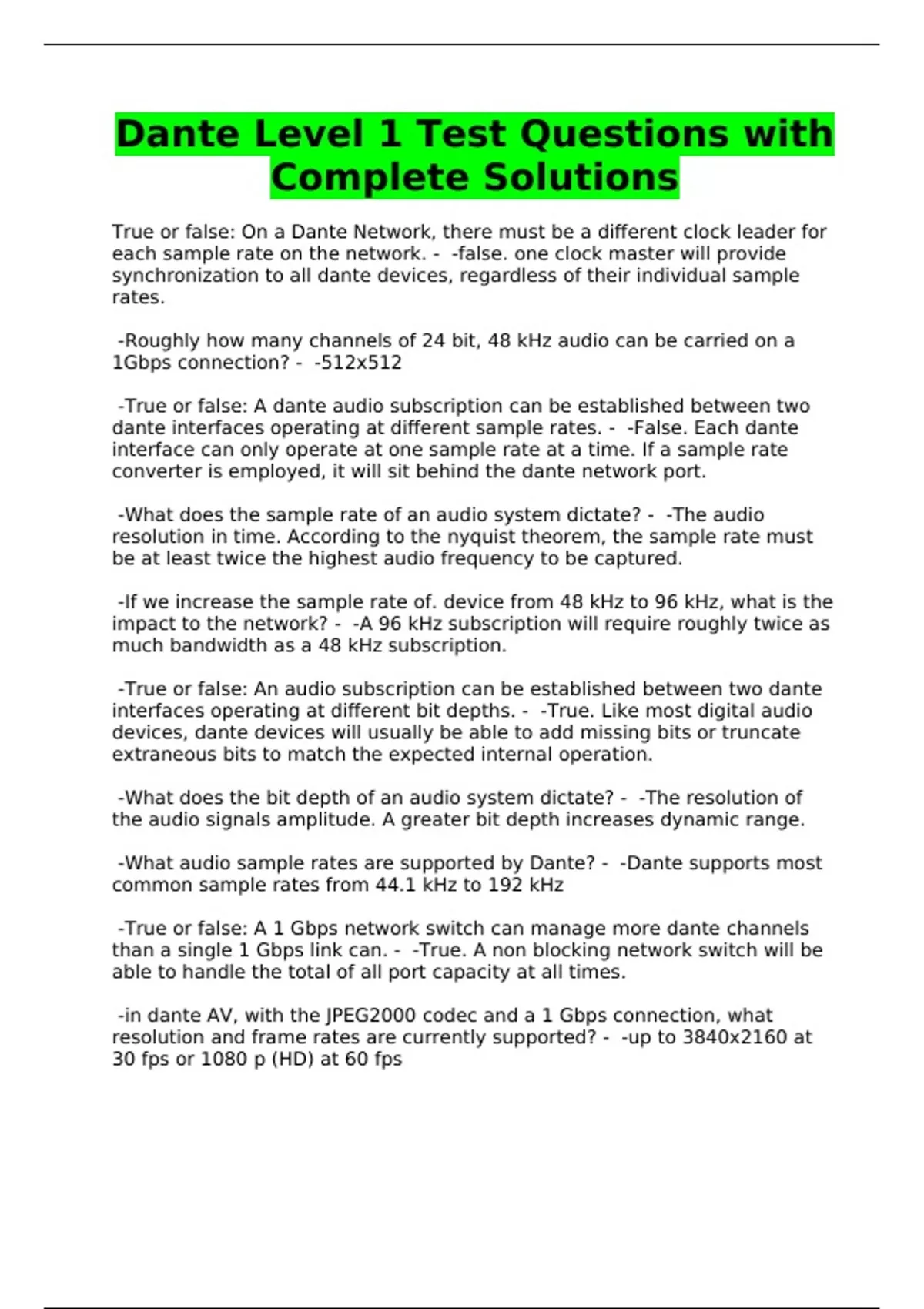

Dante Level 1 Test Questions with
Complete Solutions
True or false: On a Dante Network, there must be a different clock leader for
each sample rate on the network. - -false. one clock master will provide
synchronization to all dante devices, regardless of their individual sample
rates.
-Roughly how many channels of 24 bit, 48 kHz audio can be carried on a
1Gbps connection? - -512x512
-True or false: A dante audio subscription can be established between two
dante interfaces operating at different sample rates. - -False. Each dante
interface can only operate at one sample rate at a time. If a sample rate
converter is employed, it will sit behind the dante network port.
-What does the sample rate of an audio system dictate? - -The audio
resolution in time. According to the nyquist theorem, the sample rate must
be at least twice the highest audio frequency to be captured.
-If we increase the sample rate of. device from 48 kHz to 96 kHz, what is the
impact to the network? - -A 96 kHz subscription will require roughly twice as
much bandwidth as a 48 kHz subscription.
-True or false: An audio subscription can be established between two dante
interfaces operating at different bit depths. - -True. Like most digital audio
devices, dante devices will usually be able to add missing bits or truncate
extraneous bits to match the expected internal operation.
-What does the bit depth of an audio system dictate? - -The resolution of
the audio signals amplitude. A greater bit depth increases dynamic range.
-What audio sample rates are supported by Dante? - -Dante supports most
common sample rates from 44.1 kHz to 192 kHz
-True or false: A 1 Gbps network switch can manage more dante channels
than a single 1 Gbps link can. - -True. A non blocking network switch will be
able to handle the total of all port capacity at all times.
-in dante AV, with the JPEG2000 codec and a 1 Gbps connection, what
resolution and frame rates are currently supported? - -up to 3840x2160 at
30 fps or 1080 p (HD) at 60 fps
