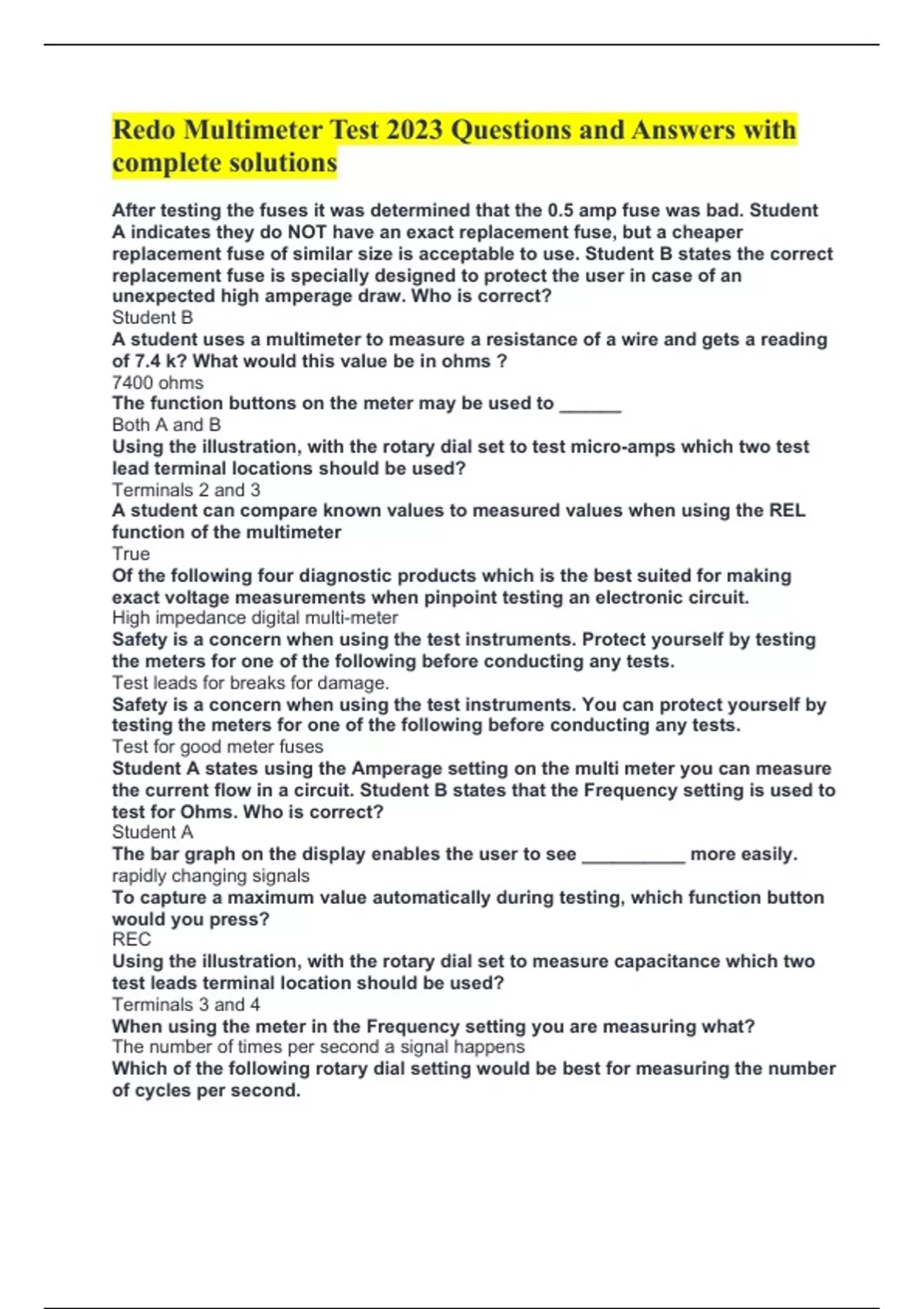

Redo Multimeter Test 2023 Questions and Answers with complete solutions After testing the fuses it was determined that the 0.5 amp fuse was bad. Student A indicates they do NOT have an exact replacement fuse, but a cheaper replacement fuse of similar size is acceptable to use. Student B states the correct replacement fuse is specially designed to protect the user in case of an unexpected high amperage draw. Who is correct? Student B A student uses a multimeter to measure a resistance of a wire and gets a reading of 7.4 k? What would this value be in ohms ? 7400 ohms The function buttons on the meter may be used to ______ Both A and B Using the illustration, with the rotary dial set to test micro-amps which two test lead terminal locations should be used? Terminals 2 and 3 A student can compare known values to measured values when using the REL function of the multimeter True Of the following four diagnostic products which is the best suited for making exact voltage measurements when pinpoint testing an electronic circuit. High impedance digital multi-meter Safety is a concern when using the test instruments. Protect yourself by testing the meters for one of the following before conducting any tests. Test leads for breaks for damage. Safety is a concern when using the test instruments. You can protect yourself by testing the meters for one of the following before conducting any tests. Test for good meter fuses Student A states using the Amperage setting on the multi meter you can measure the current flow in a circuit. Student B states that the Frequency setting is used to test for Ohms. Who is correct? Student A The bar graph on the display enables the user to see __________ more easily. rapidly changing signals To capture a maximum value automatically during testing, which function button would you press? REC Using the illustration, with the rotary dial set to measure capacitance which two test leads terminal location should be used? Terminals 3 and 4 When using the meter in the Frequency setting you are measuring what? The number of times per second a signal happens Which of the following rotary dial setting would be best for measuring the number of cycles per second. Hz The meter is set-up and testing mV but an OL reading is displayed to correct this situation. Student A state the REL button should be pressed. Student B state the RANGE button should be pressed. Who is correct? Student B Which function button sets the display to zero and factors out undesired reading? REL Two Students are discussing the HOLD function button. Student A states the HOLD button will pause or freeze the screen to capture a reading. Student B states the pressing the HOLD button again will return to the live electrical reading. Who is correct? Both Student A and Student B What does it mean when a meter has "high-impedance" Can measure a high voltage Two Students are discussing connecting the meter to measure amperage. Student A states the meter leads should be connected in parallel with the circuit. Student B states he meter leads should be connected in series with the circuit. Who is correct? Student B Using the illustration, what dial setting would be used to test for milli-amps? D Using the illustration, with the rotary dial set to test frequency which two test lead terminal locations should be used? Terminals 3 and 4 Using the illustration, what dial setting would be used to test for continuity? C Using the illustration: when testing the fuse connect the red test lead terminals into which meter terminals (this is referring to the lead terminal, NOT the probing end). Terminal 4 Using the illustration, with the rotary dial set to test diodes which two test lead terminal locations should be used? Terminals 2 and 3 Using the illustration provided, with the rotary dial set test measure amperage, which two test terminals locations should be used? Terminals 1 and 3 Using the illustration, what dial setting would be used to test a capacitor? F Using the illustrations, what dial setting would be used to test for Volts AC? A Using the illustration, what dial setting would be used to test diodes? F Using the illustration, what dial setting would be used to test frequency? E Using the illustrations, what dial setting would be used to test for Volts DC?
