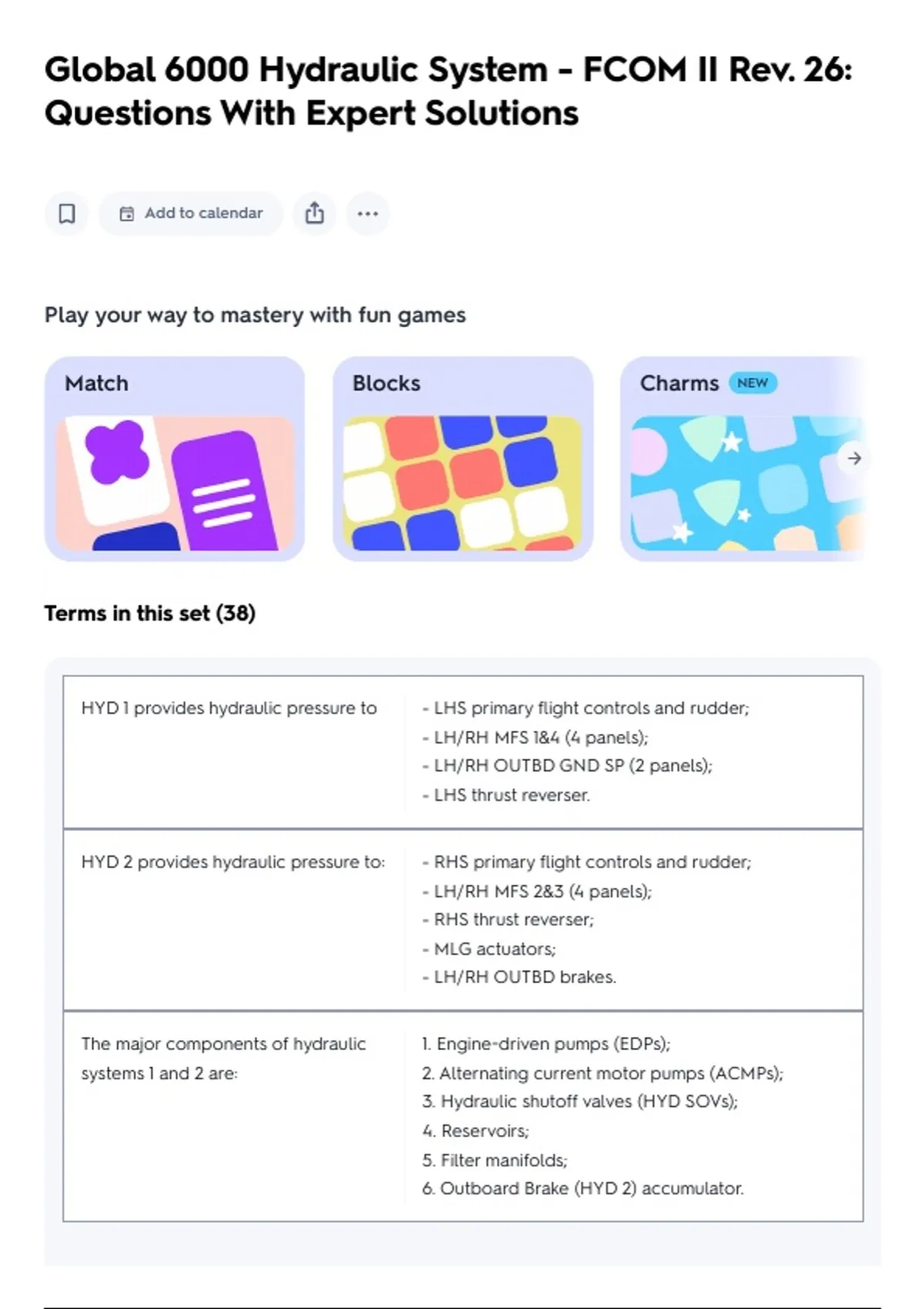

Global 6000 Hydraulic System - FCOM II Rev. 26:
Questions With Expert Solutions
Add to calendar
Play your way to mastery with fun games
Match Blocks Charms NEW
Terms in this set (38)
HYD 1 provides hydraulic pressure to - LHS primary flight controls and rudder;
- LH/RH MFS 1&4 (4 panels);
- LH/RH OUTBD GND SP (2 panels);
- LHS thrust reverser.
HYD 2 provides hydraulic pressure to: - RHS primary flight controls and rudder;
- LH/RH MFS 2&3 (4 panels);
- RHS thrust reverser;
- MLG actuators;
- LH/RH OUTBD brakes.
The major components of hydraulic 1. Engine−driven pumps (EDPs);
systems 1 and 2 are: 2. Alternating current motor pumps (ACMPs);
3. Hydraulic shutoff valves (HYD SOVs);
4. Reservoirs;
5. Filter manifolds;
6. Outboard Brake (HYD 2) accumulator.
, HYD 3 provides hydraulic pressure to - LH/RH primary flight controls and rudder;
- LH/RH INBD GND SP (2 panels);
- LH/RH MLG and NLG uplock;
- MLG and NLG doors;
- NLG actuator;
- LH/RH MLG sidebrace;
- NLG steering;
- LH/RH INBD brakes;
- Parking brakes.
The major components of hydraulic 1. Reservoir;
system 3 are: 2. Filter manifold;
3. Two ACMPs (3A and 3B);
4. Heat exchanger;
5. Ram air turbine (RAT) hydraulic pump;
6. RAT accumulator
The RAT is associated with Hydraulic HYD 3
system...
Closing a hydraulic shutoff valve Cavitate
while the engine is running may cause
the engine driven pump to...
Which system powers the nose wheel HYD 3
steering?
Which system powers the gear HYD 3
doors?
The hydraulic pressure readout in the 1800 psi
synoptic page indicates LO PRESS in
amber when the pressure is below...
On the ground, ACMP's will be - Slats/flaps are selected out of IN/0;
commanded on automatically (AUTO - Motion has stopped;
mode selected) when... - A minimum of two VFG's are operating (all
electrical buses powered).
