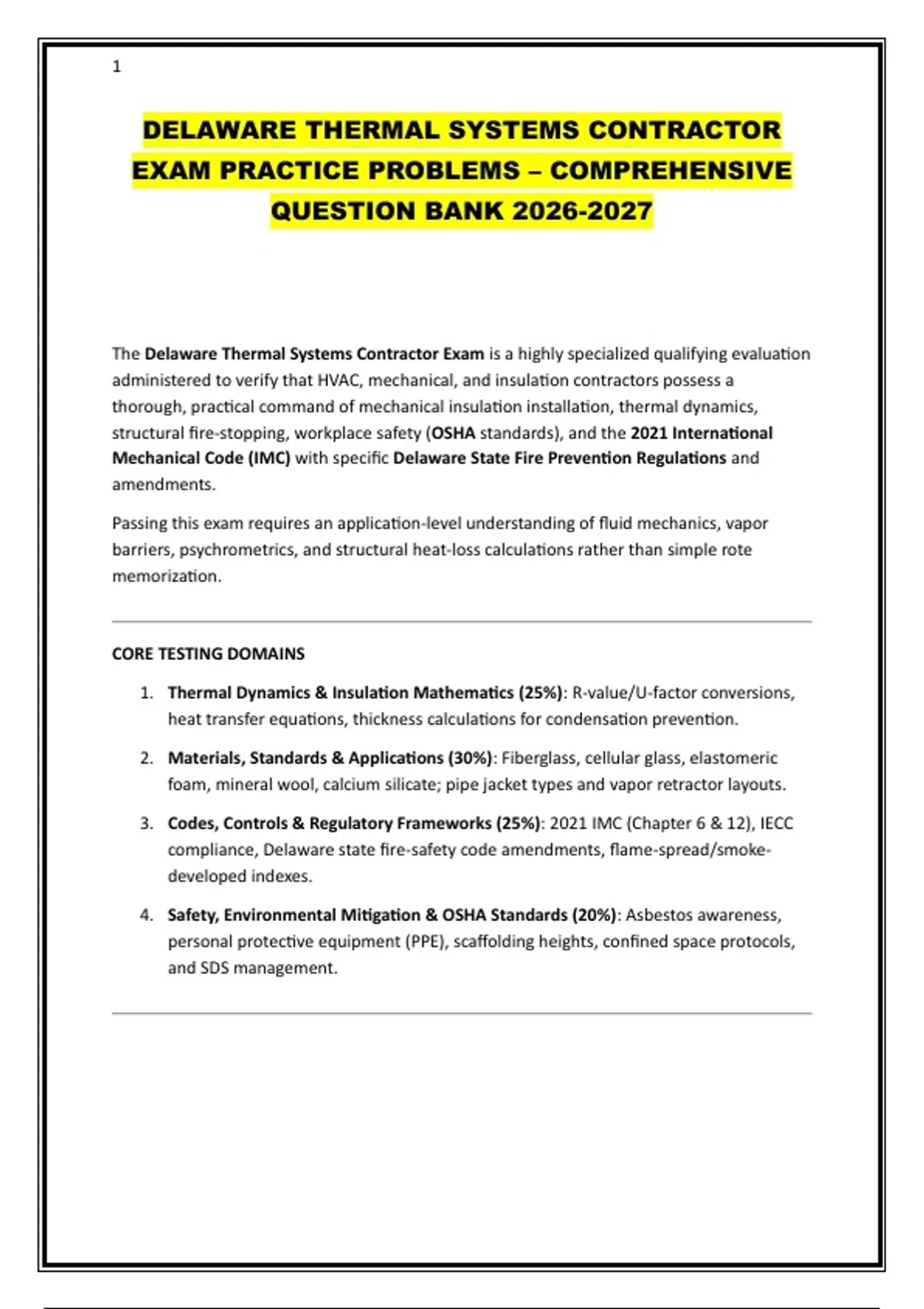

DELAWARE THERMAL SYSTEMS CONTRACTOR
EXAM PRACTICE PROBLEMS – COMPREHENSIVE
QUESTION BANK 2026-2027
The Delaware Thermal Systems Contractor Exam is a highly specialized qualifying evaluation
administered to verify that HVAC, mechanical, and insulation contractors possess a
thorough, practical command of mechanical insulation installation, thermal dynamics,
structural fire-stopping, workplace safety (OSHA standards), and the 2021 International
Mechanical Code (IMC) with specific Delaware State Fire Prevention Regulations and
amendments.
Passing this exam requires an application-level understanding of fluid mechanics, vapor
barriers, psychrometrics, and structural heat-loss calculations rather than simple rote
memorization.
CORE TESTING DOMAINS
1. Thermal Dynamics & Insulation Mathematics (25%): R-value/U-factor conversions,
heat transfer equations, thickness calculations for condensation prevention.
2. Materials, Standards & Applications (30%): Fiberglass, cellular glass, elastomeric
foam, mineral wool, calcium silicate; pipe jacket types and vapor retractor layouts.
3. Codes, Controls & Regulatory Frameworks (25%): 2021 IMC (Chapter 6 & 12), IECC
compliance, Delaware state fire-safety code amendments, flame-spread/smoke-
developed indexes.
4. Safety, Environmental Mitigation & OSHA Standards (20%): Asbestos awareness,
personal protective equipment (PPE), scaffolding heights, confined space protocols,
and SDS management.
,2
QUESTIONS 1–100
Q1: An insulation contractor is evaluating a chilled water line running
through an unconditioned commercial mechanical room in
Wilmington, Delaware. The ambient air temperature during peak
summer is 32°C (90°F) with a relative humidity of 75%, establishing a
dew point of 27°C (80.6°F). The pipe carries water at 4.5°C (40°F).
What is the primary operational objective of the thermal system
design in this scenario, and what installation error will cause
immediate system failure?
A) To minimize sensible radiant heat gain using mineral wool; failing
to install stainless steel banding.
B) To prevent surface condensation by matching the insulation
thickness to the ambient dew point; failing to achieve a 100%
airtight vapor retarder seal.
C) To maximize convective heat transfer using loose-fill cellulose;
failing to pitch the line toward a low-point drain.
D) To elevate the fluid temperature above the flash point; failing to
ground the metal protective jacket.
Rationale: The correct answer is B. On cold lines (chilled water,
refrigeration), the absolute priority of thermal insulation is preventing
condensation. If moisture forms on or beneath the insulation, it
destroys the thermal efficiency and induces corrosion under
insulation (CUI). Because cold surfaces naturally pull water vapor
inward from hot ambient air via vapor pressure differentials, a
perfectly sealed, continuous vapor retarder is mandatory. Options A,
,3
C, and D describe wrong material profiles or irrelevant mechanical
variables.
Q2: According to the 2021 International Mechanical Code (IMC)
Chapter 6, as adopted and amended by the State of Delaware, what
are the maximum allowable thresholds for the Flame Spread Index
and the Smoke Developed Index for materials utilized inside a
commercial environmental air plenum?
A) Flame Spread ≤ 10; Smoke Developed ≤ 25
B) Flame Spread ≤ 25; Smoke Developed ≤ 50
C) Flame Spread ≤ 50; Smoke Developed ≤ 100
D) Flame Spread ≤ 75; Smoke Developed ≤ 200
Rationale: The correct answer is B. IMC Section 602.2.1 explicitly
dictates that materials exposed within an environmental air
plenum—including duct insulation, coverings, linings, and tapes—
must be tested in accordance with ASTM E84 or UL 723 and possess a
maximum Flame Spread Index of 25 and a maximum Smoke
Developed Index of 50. Options A, C, and D do not represent this
baseline life-safety parameter.
Q3: A technician needs to insulate a high-pressure steam pipe
operating at a continuous temperature of 315°C (600°F). Which of
the following thermal insulation materials is most appropriate for this
high-temperature, heavy-industrial application due to its high
compressive strength and thermal stability?
A) Flexible elastomeric closed-cell foam
B) Pre-formed expanded polystyrene sheets
C) Calcium silicate molded pipe insulation
D) Polyisocyanurate rigid foam segments
Rationale: The correct answer is C because Calcium Silicate is an
inorganic, non-combustible insulation explicitly engineered for high-
temperature applications (up to 650°C / 1200°F) that demands
, 4
extreme structural durability and resistance to heavy physical
crushing. Options A, B, and D are organic or polymer-based foam
insulations that degrade, melt, or off-gas dangerously at
temperatures well below 315°C.
Q4: A mechanical contractor is calculating the total thermal
resistance (Total R-value) of a composite wall section to verify
compliance with the Delaware Energy Conservation Code. The wall
consists of an exterior brick facade (R = 0.8), a 50mm air gap (R =
1.0), rigid polyisocyanurate board (R = 6.0), and interior gypsum
board (R = 0.55). What is the total U-factor (thermal transmittance)
of this composite section?
A) 0.083
B) 0.120
C) 8.350
D) 1.250
Rationale: The correct answer is B. First, sum the individual R-values
to determine the total thermal resistance: \(R_{total} = 0.8 + 1.0 + 6.0
+ 0.55 = 8.35\). The U-factor is the exact mathematical reciprocal of
the total R-value (U = 1 / R). Therefore, U = .35 ≈ 0.1197, which
rounds to 0.120. Option C is the total R-value, not the U-factor.
Options A and D represent mathematical errors.
Q5: Under OSHA standard 1926.451, what is the maximum vertical
height to which a mechanical insulation contractor can erect a
standard supported scaffold before a fully engineered fall protection
system, guardrails, or a personal fall arrest system (PFAS) becomes a
mandatory safety parameter?
A) 4 feet
B) 6 feet
C) 10 feet
D) 20 feet
