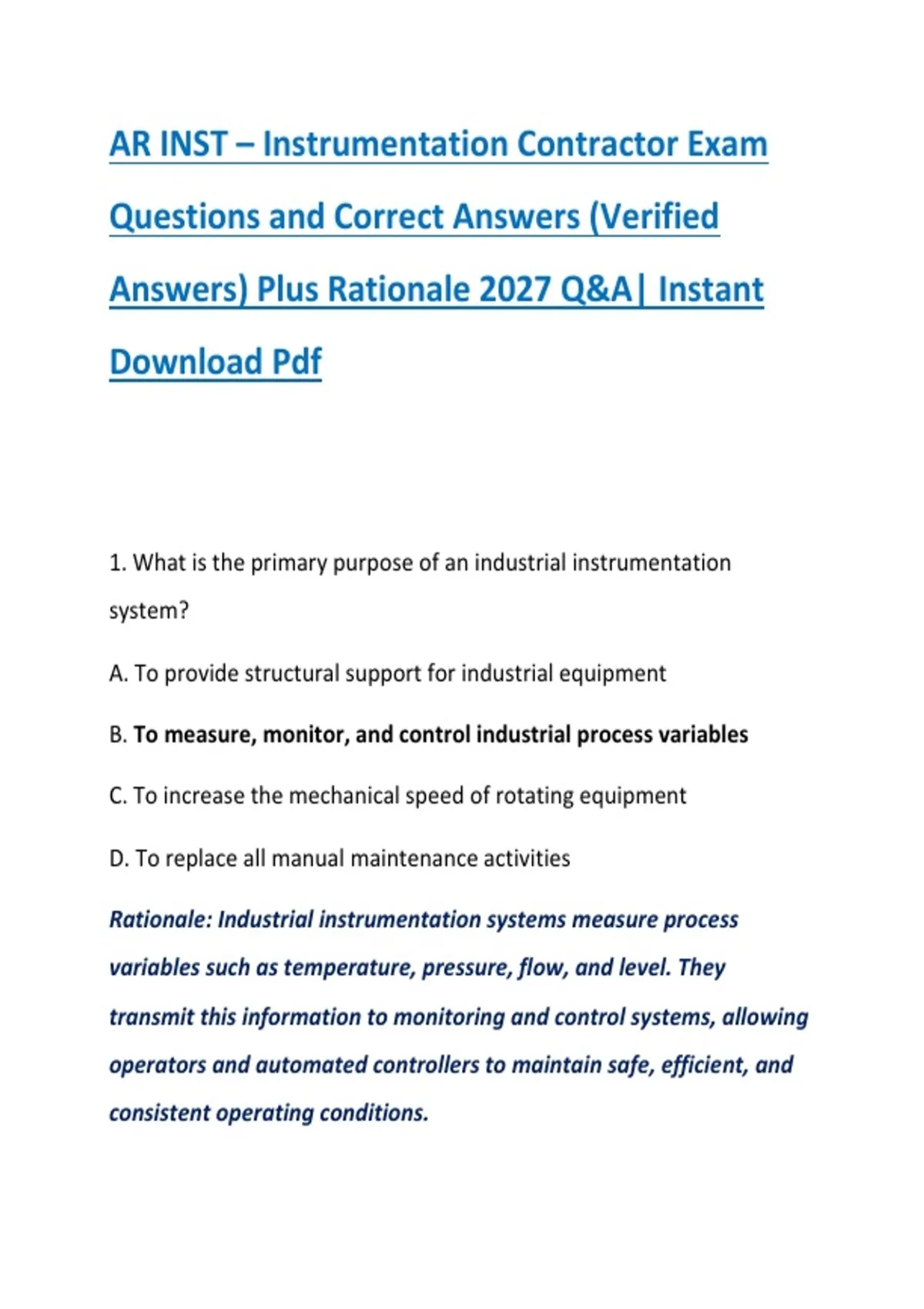

AR INST – Instrumentation Contractor Exam
Questions and Correct Answers (Verified
Answers) Plus Rationale 2027 Q&A| Instant
Download Pdf
1. What is the primary purpose of an industrial instrumentation
system?
A. To provide structural support for industrial equipment
B. To measure, monitor, and control industrial process variables
C. To increase the mechanical speed of rotating equipment
D. To replace all manual maintenance activities
Rationale: Industrial instrumentation systems measure process
variables such as temperature, pressure, flow, and level. They
transmit this information to monitoring and control systems, allowing
operators and automated controllers to maintain safe, efficient, and
consistent operating conditions.
,2. Which of the following is a common process variable measured by
instrumentation?
A. Building paint color
B. Equipment purchase price
C. Fluid pressure
D. Employee work schedule
Rationale: Pressure is a fundamental process variable in industrial
facilities. Pressure instruments monitor the force exerted by fluids or
gases, helping operators maintain process conditions, detect
abnormal operation, and protect equipment from excessive pressure.
3. What is the function of a pressure transmitter?
A. To mechanically support a pressure vessel
B. To regulate electrical frequency
C. To convert measured pressure into a usable transmitted signal
D. To increase the pressure of a process fluid
Rationale: A pressure transmitter senses process pressure and
converts it into a standardized output signal, such as a 4–20 mA
electrical signal or a digital communication signal. The receiving
,control system uses this information for indication, recording, alarms,
or automatic control.
4. In a conventional 4–20 mA instrumentation loop, what does a 4 mA
signal commonly represent?
A. A transmitter fault in every application
B. The maximum measurement value
C. The lower range value of the calibrated measurement
D. A signal that is always equal to zero engineering units
Rationale: In a standard 4–20 mA measurement loop, 4 mA normally
corresponds to the configured lower range value, or 0% of the
calibrated span. This is called a live zero because a nonzero current is
present even at the lower range, helping distinguish normal operation
from certain wiring or power failures.
5. A pressure transmitter is calibrated from 0 to 100 psi. What pressure
does a 12 mA output represent, assuming a linear 4–20 mA
relationship?
A. 25 psi
B. 50 psi
C. 60 psi
, D. 75 psi
Rationale: The current span is 16 mA. A 12 mA signal is 8 mA above
the 4 mA lower range, which is 50% of the span. Fifty percent of 100
psi is 50 psi.
6. Which instrument is commonly used to measure process
temperature?
A. Orifice plate
B. Pressure relief valve
C. Resistance temperature detector (RTD)
D. Flow nozzle
Rationale: An RTD measures temperature by detecting the change in
electrical resistance of a sensing element, commonly platinum. RTDs
are widely used in industrial applications because of their stability,
repeatability, and accuracy over their specified operating range.
7. What is the operating principle of a thermocouple?
A. It measures temperature through changes in fluid pressure.
B. It generates a voltage related to the temperature difference
between two dissimilar metals' junctions.
C. It measures temperature by counting mechanical rotations.
