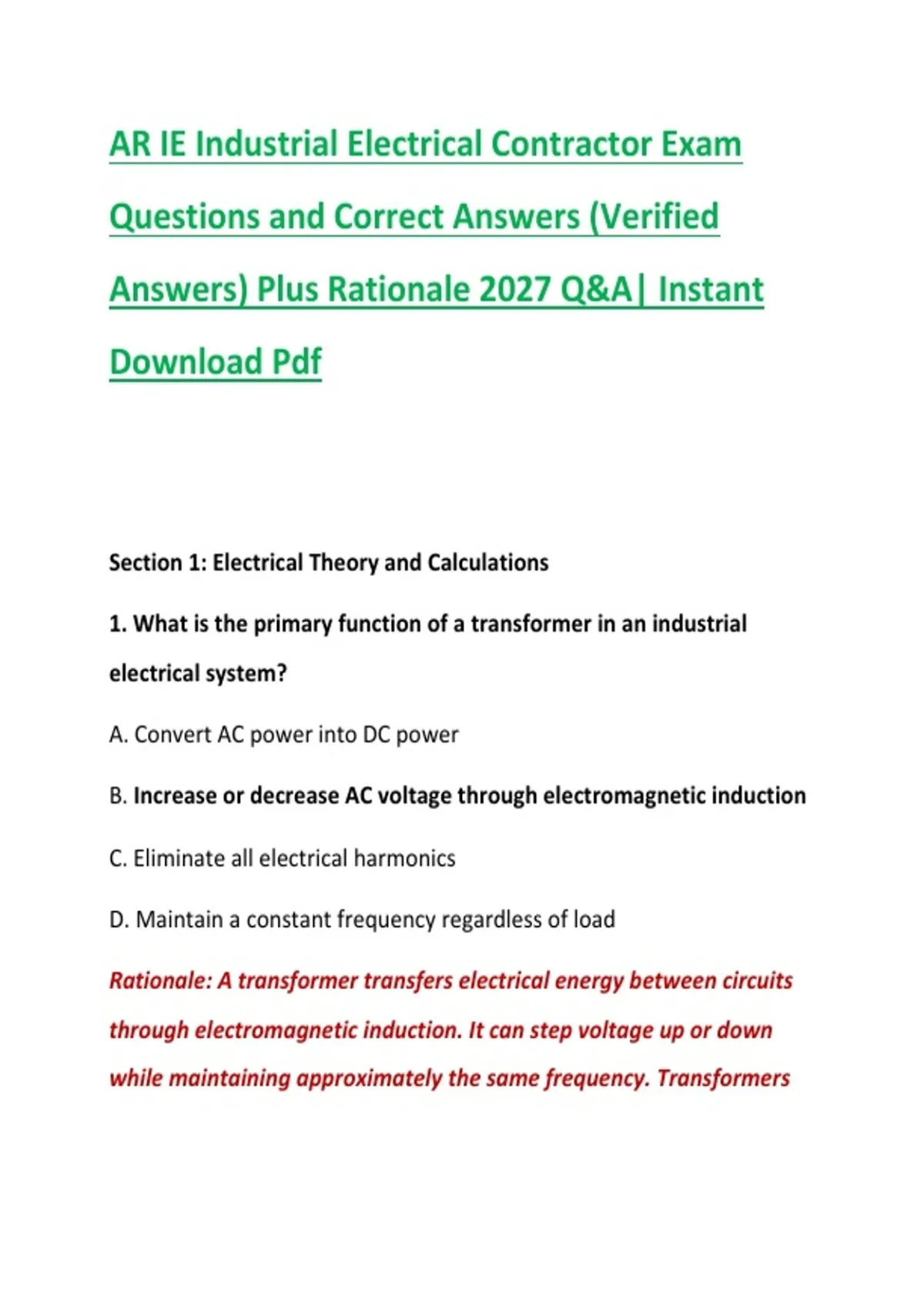

AR IE Industrial Electrical Contractor Exam
Questions and Correct Answers (Verified
Answers) Plus Rationale 2027 Q&A| Instant
Download Pdf
Section 1: Electrical Theory and Calculations
1. What is the primary function of a transformer in an industrial
electrical system?
A. Convert AC power into DC power
B. Increase or decrease AC voltage through electromagnetic induction
C. Eliminate all electrical harmonics
D. Maintain a constant frequency regardless of load
Rationale: A transformer transfers electrical energy between circuits
through electromagnetic induction. It can step voltage up or down
while maintaining approximately the same frequency. Transformers
,are commonly used in industrial facilities to supply distribution,
control, and equipment circuits at appropriate voltage levels.
2. A three-phase industrial motor operates at 480 volts and draws 30
amperes at a power factor of 0.85. What is its approximate apparent
power?
A. 14.4 kVA
B. 18.6 kVA
C. 24.9 kVA
D. 35.3 kVA
Rationale: Three-phase apparent power is calculated using S = √3 × V
× I. Therefore, S = 1.732 × 480 × 30 = approximately 24,941 VA, or 24.9
kVA. Power factor is not needed to calculate apparent power; it is
used to determine real power.
3. Which instrument is most appropriate for measuring insulation
resistance in a motor winding?
A. Clamp ammeter
B. Phase rotation meter
C. Insulation resistance tester
D. Standard non-contact voltage detector
,Rationale: An insulation resistance tester, commonly called a
megohmmeter, applies a specified DC test voltage and measures
insulation resistance. It helps identify insulation deterioration,
moisture, contamination, or damage. Testing must follow the
equipment manufacturer's instructions, and sensitive electronic
components should be isolated as required.
4. What is the primary purpose of equipment grounding in an
industrial electrical installation?
A. Increase normal operating voltage
B. Carry normal motor operating current continuously
C. Provide a low-impedance path for fault current to facilitate
protective-device operation
D. Eliminate the need for overcurrent protection
Rationale: Equipment grounding connects exposed conductive
equipment parts to the grounding system. If a fault energizes a metal
enclosure, the grounding path helps carry sufficient fault current to
operate the overcurrent protective device. Grounding does not replace
circuit breakers, fuses, or other required protective measures.
5. Which condition is most likely to cause excessive voltage drop in a
long industrial feeder?
, A. Increasing conductor size
B. Reducing conductor length
C. Using undersized conductors for the load and distance
D. Improving power factor
Rationale: Voltage drop increases with conductor resistance, circuit
length, and current. Undersized conductors have greater resistance
and may produce excessive voltage drop, heating, and equipment
performance problems. Proper conductor sizing considers load
current, conductor material, installation conditions, and applicable
code requirements.
6. What does a motor's nameplate full-load current primarily
indicate?
A. The motor's locked-rotor current
B. The maximum instantaneous short-circuit current
C. The current associated with its rated operating conditions
D. The current required when the motor is disconnected from its load
Rationale: Nameplate full-load current identifies the motor current at
its rated output, voltage, frequency, and other specified conditions. It
is an important reference for overload protection, conductor
Questions and Correct Answers (Verified
Answers) Plus Rationale 2027 Q&A| Instant
Download Pdf
Section 1: Electrical Theory and Calculations
1. What is the primary function of a transformer in an industrial
electrical system?
A. Convert AC power into DC power
B. Increase or decrease AC voltage through electromagnetic induction
C. Eliminate all electrical harmonics
D. Maintain a constant frequency regardless of load
Rationale: A transformer transfers electrical energy between circuits
through electromagnetic induction. It can step voltage up or down
while maintaining approximately the same frequency. Transformers
,are commonly used in industrial facilities to supply distribution,
control, and equipment circuits at appropriate voltage levels.
2. A three-phase industrial motor operates at 480 volts and draws 30
amperes at a power factor of 0.85. What is its approximate apparent
power?
A. 14.4 kVA
B. 18.6 kVA
C. 24.9 kVA
D. 35.3 kVA
Rationale: Three-phase apparent power is calculated using S = √3 × V
× I. Therefore, S = 1.732 × 480 × 30 = approximately 24,941 VA, or 24.9
kVA. Power factor is not needed to calculate apparent power; it is
used to determine real power.
3. Which instrument is most appropriate for measuring insulation
resistance in a motor winding?
A. Clamp ammeter
B. Phase rotation meter
C. Insulation resistance tester
D. Standard non-contact voltage detector
,Rationale: An insulation resistance tester, commonly called a
megohmmeter, applies a specified DC test voltage and measures
insulation resistance. It helps identify insulation deterioration,
moisture, contamination, or damage. Testing must follow the
equipment manufacturer's instructions, and sensitive electronic
components should be isolated as required.
4. What is the primary purpose of equipment grounding in an
industrial electrical installation?
A. Increase normal operating voltage
B. Carry normal motor operating current continuously
C. Provide a low-impedance path for fault current to facilitate
protective-device operation
D. Eliminate the need for overcurrent protection
Rationale: Equipment grounding connects exposed conductive
equipment parts to the grounding system. If a fault energizes a metal
enclosure, the grounding path helps carry sufficient fault current to
operate the overcurrent protective device. Grounding does not replace
circuit breakers, fuses, or other required protective measures.
5. Which condition is most likely to cause excessive voltage drop in a
long industrial feeder?
, A. Increasing conductor size
B. Reducing conductor length
C. Using undersized conductors for the load and distance
D. Improving power factor
Rationale: Voltage drop increases with conductor resistance, circuit
length, and current. Undersized conductors have greater resistance
and may produce excessive voltage drop, heating, and equipment
performance problems. Proper conductor sizing considers load
current, conductor material, installation conditions, and applicable
code requirements.
6. What does a motor's nameplate full-load current primarily
indicate?
A. The motor's locked-rotor current
B. The maximum instantaneous short-circuit current
C. The current associated with its rated operating conditions
D. The current required when the motor is disconnected from its load
Rationale: Nameplate full-load current identifies the motor current at
its rated output, voltage, frequency, and other specified conditions. It
is an important reference for overload protection, conductor
