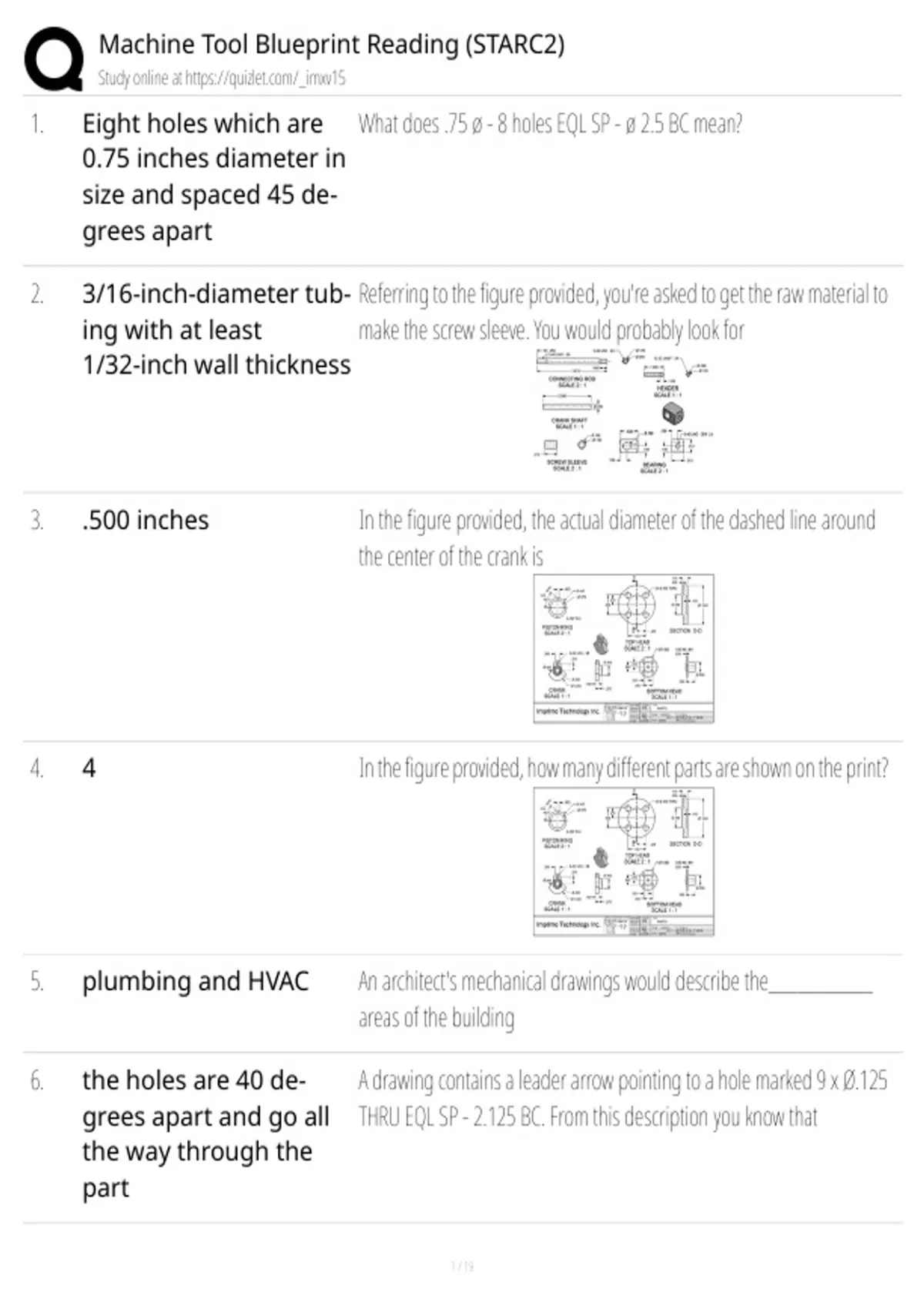

Machine Tool Blueprint Reading (STARC2)
Study online at https://quizlet.com/_imxv15
1. Eight holes which are What does .75 ø - 8 holes EQL SP - ø 2.5 BC mean?
0.75 inches diameter in
size and spaced 45 de-
grees apart
2. 3/16-inch-diameter tub- Referring to the figure provided, you're asked to get the raw material to
ing with at least make the screw sleeve. You would probably look for
1/32-inch wall thickness
3. .500 inches In the figure provided, the actual diameter of the dashed line around
the center of the crank is
4. 4 In the figure provided, how many different parts are shown on the print?
5. plumbing and HVAC An architect's mechanical drawings would describe the___________
areas of the building
6. the holes are 40 de- A drawing contains a leader arrow pointing to a hole marked 9 x Ø.125
grees apart and go all THRU EQL SP - 2.125 BC. From this description you know that
the way through the
part
, Machine Tool Blueprint Reading (STARC2)
Study online at https://quizlet.com/_imxv15
7. .375 A 4:1 scale drawing of a bearing is shown on a A size print. Using a ruler,
you measure the inside diameter of the part on the paper and you get
1.50 inches. What is the actual dimension in inches?
8. 4.55" A pipe with an outside diameter of 4.50" ± .05" will have an OD of
_______ for the MMC
9. show different position Phantom lines are used to
or repetitive features
10. Go back to the project You're machining a "rush" part for a repair order from a scale drawing
engineer or drafter to print given to you by the project engineer. As you begin to machine an
get true dimension end feature, you find a dimension missing. To produce the part on time,
you could
11. Dimension Lines with arrowhead to show distance relationships between the fea-
ture on a drawing are called _________ lines
12. Can't be determined In the figure provided, the overall height of the crank
from these views alone
13. revision block An engineer who has changed a part dimension from .500" to .750"
would have the changed noted on the drawing in the
14. The first part is likely to A drawing you're reading shows section lines on one part consisting of
be made of copper or alternating solid and dashed 45-degree lines, while an adjacent part
bronze, while the sec- shows 45-degree double lines. From this, you conclude that
ond is steel
15. Slots
, Machine Tool Blueprint Reading (STARC2)
Study online at https://quizlet.com/_imxv15
T-shaped, square-bottomed, dovetailed, and v-shaped are all types of
_________ in a machined part.
16. 2.5 in. The information provided in the title block indicates the scale as 2:1. If
the OD of a part in the drawing is 5 inches, what is the real OD of the
part?
17. 1:2 A simple shaft is 1 inch in diameter and 5.5 inches long. If a drafter
wants to draw the part at a _______ scale, the part will be .50 inch in
diameter and 2.75 inches long on paper.
18. sectional view To expose the interior features of a part, an imaginary cutting plane
creates a
19. elevation contour lines are lines representing all the locations that are at that height above sea
level.
20. elevation height above sea level
21. footing is a slab of cement several feet wide and a foot or more thick, is poured
underneath where foundation walls or building columns are to be
located to support the walls above
22. Concrete Masonry Unit A block of hardened concrete, with or without hollow cores, designed
(CMU) to be laid in the same manner as brick and stone.
23. Plan View Drawing of a structure with the view from overhead, looking down.
24. Hatching an arrangement of lines and other markings that shows what material
is used at each location.
25. Common Material Sym- In the figure provided, these symbols are referred to as
bols
Study online at https://quizlet.com/_imxv15
1. Eight holes which are What does .75 ø - 8 holes EQL SP - ø 2.5 BC mean?
0.75 inches diameter in
size and spaced 45 de-
grees apart
2. 3/16-inch-diameter tub- Referring to the figure provided, you're asked to get the raw material to
ing with at least make the screw sleeve. You would probably look for
1/32-inch wall thickness
3. .500 inches In the figure provided, the actual diameter of the dashed line around
the center of the crank is
4. 4 In the figure provided, how many different parts are shown on the print?
5. plumbing and HVAC An architect's mechanical drawings would describe the___________
areas of the building
6. the holes are 40 de- A drawing contains a leader arrow pointing to a hole marked 9 x Ø.125
grees apart and go all THRU EQL SP - 2.125 BC. From this description you know that
the way through the
part
, Machine Tool Blueprint Reading (STARC2)
Study online at https://quizlet.com/_imxv15
7. .375 A 4:1 scale drawing of a bearing is shown on a A size print. Using a ruler,
you measure the inside diameter of the part on the paper and you get
1.50 inches. What is the actual dimension in inches?
8. 4.55" A pipe with an outside diameter of 4.50" ± .05" will have an OD of
_______ for the MMC
9. show different position Phantom lines are used to
or repetitive features
10. Go back to the project You're machining a "rush" part for a repair order from a scale drawing
engineer or drafter to print given to you by the project engineer. As you begin to machine an
get true dimension end feature, you find a dimension missing. To produce the part on time,
you could
11. Dimension Lines with arrowhead to show distance relationships between the fea-
ture on a drawing are called _________ lines
12. Can't be determined In the figure provided, the overall height of the crank
from these views alone
13. revision block An engineer who has changed a part dimension from .500" to .750"
would have the changed noted on the drawing in the
14. The first part is likely to A drawing you're reading shows section lines on one part consisting of
be made of copper or alternating solid and dashed 45-degree lines, while an adjacent part
bronze, while the sec- shows 45-degree double lines. From this, you conclude that
ond is steel
15. Slots
, Machine Tool Blueprint Reading (STARC2)
Study online at https://quizlet.com/_imxv15
T-shaped, square-bottomed, dovetailed, and v-shaped are all types of
_________ in a machined part.
16. 2.5 in. The information provided in the title block indicates the scale as 2:1. If
the OD of a part in the drawing is 5 inches, what is the real OD of the
part?
17. 1:2 A simple shaft is 1 inch in diameter and 5.5 inches long. If a drafter
wants to draw the part at a _______ scale, the part will be .50 inch in
diameter and 2.75 inches long on paper.
18. sectional view To expose the interior features of a part, an imaginary cutting plane
creates a
19. elevation contour lines are lines representing all the locations that are at that height above sea
level.
20. elevation height above sea level
21. footing is a slab of cement several feet wide and a foot or more thick, is poured
underneath where foundation walls or building columns are to be
located to support the walls above
22. Concrete Masonry Unit A block of hardened concrete, with or without hollow cores, designed
(CMU) to be laid in the same manner as brick and stone.
23. Plan View Drawing of a structure with the view from overhead, looking down.
24. Hatching an arrangement of lines and other markings that shows what material
is used at each location.
25. Common Material Sym- In the figure provided, these symbols are referred to as
bols
