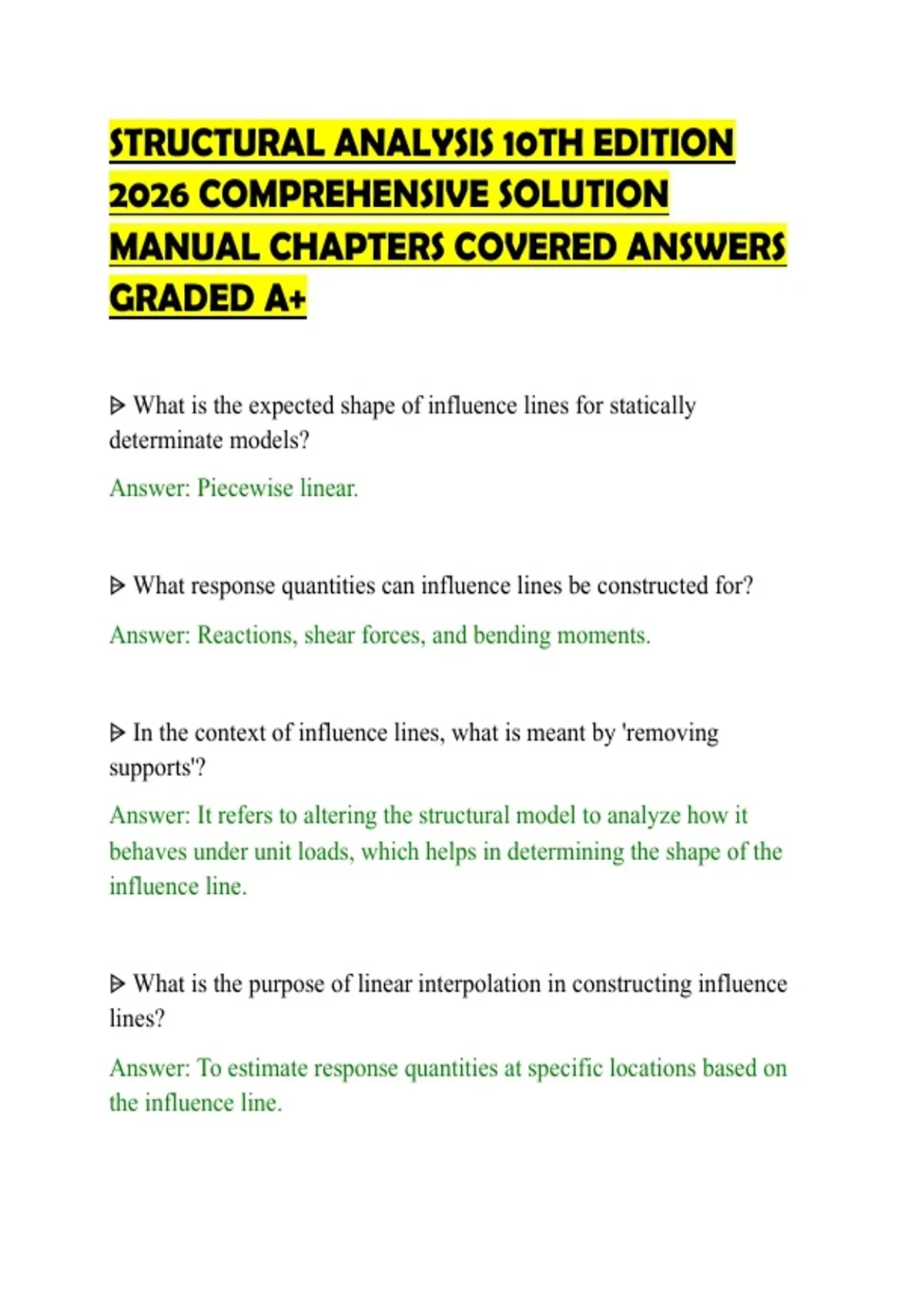

STRUCTURAL ANALYSIS 10TH EDITION
2026 COMPREHENSIVE SOLUTION
MANUAL CHAPTERS COVERED ANSWERS
GRADED A+
⩥ What is the expected shape of influence lines for statically
determinate models?
Answer: Piecewise linear.
⩥ What response quantities can influence lines be constructed for?
Answer: Reactions, shear forces, and bending moments.
⩥ In the context of influence lines, what is meant by 'removing
supports'?
Answer: It refers to altering the structural model to analyze how it
behaves under unit loads, which helps in determining the shape of the
influence line.
⩥ What is the purpose of linear interpolation in constructing influence
lines?
Answer: To estimate response quantities at specific locations based on
the influence line.
,⩥ What is the load used in the example for constructing influence lines
at a simple span?
Answer: A 5 kip load for the first example and an 8 kip load for the
second example.
⩥ What is the significance of the course CE 481 in relation to influence
lines?
Answer: Influence lines will be used for pattern loading on continuous
reinforced concrete girders.
⩥ What is the main focus of CE 583 (Bridge Design) concerning
influence lines?
Answer: Influence lines are used extensively for designing and
analyzing bridges for vehicles with prescribed axle weights and
spacings.
⩥ What is a simple span in structural engineering?
Answer: A beam supported at two points with no overhang.
⩥ What is an overhang in the context of beams?
Answer: A portion of a beam that extends beyond its support.
⩥ What is the expected outcome when applying a unit load at various
locations on a beam?
, Answer: It allows for the determination of how the reactions and internal
forces change with the position of the load.
⩥ What is the relationship between influence lines and the deflected
shape of the structural model?
Answer: The shape of the influence line corresponds to the deflected
shape when subjected to a unit value of the response quantity of interest.
⩥ What is the primary focus of Lecture 15 in CE 381?
Answer: The introduction and construction of influence lines for simple
beams.
⩥ What is the primary application of influence lines in continuous
beams?
Answer: To pattern loading and determine beam response to distributed
loads.
⩥ What should you be able to develop for internal forces in beams?
Answer: Influence lines.
⩥ What is the significance of the area under a linear function in the
context of influence lines?
Answer: It represents the response due to a distributed load.
