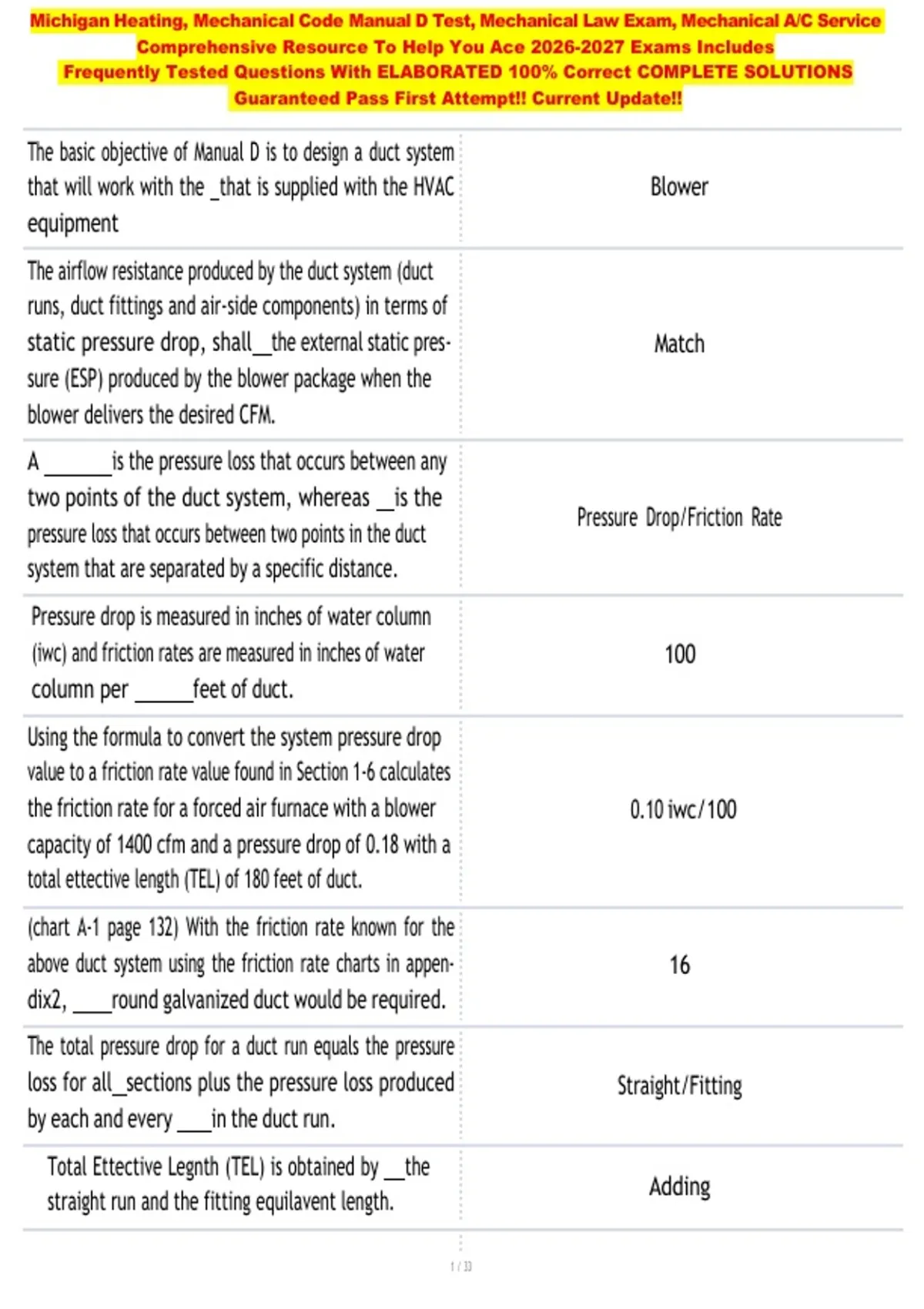

The basic objective of Manual D is to design a duct system
that will work with the that is supplied with the HVAC Blower
equipment
The airflow resistance produced by the duct system (duct
runs, duct fittings and air-side components) in terms of
static pressure drop, shall the external static pres- Match
sure (ESP) produced by the blower package when the
blower delivers the desired CFM.
A is the pressure loss that occurs between any
two points of the duct system, whereas is the
Pressure Drop/Friction Rate
pressure loss that occurs between two points in the duct
system that are separated by a specific distance.
Pressure drop is measured in inches of water column
(iwc) and friction rates are measured in inches of water 100
column per feet of duct.
Using the formula to convert the system pressure drop
value to a friction rate value found in Section 1-6 calculates
the friction rate for a forced air furnace with a blower 0.10 iwc/100
capacity of 1400 cfm and a pressure drop of 0.18 with a
total ettective length (TEL) of 180 feet of duct.
(chart A-1 page 132) With the friction rate known for the
above duct system using the friction rate charts in appen- 16
dix2, round galvanized duct would be required.
The total pressure drop for a duct run equals the pressure
loss for all sections plus the pressure loss produced Straight/Fitting
by each and every in the duct run.
Total Ettective Legnth (TEL) is obtained by the
Adding
straight run and the fitting equilavent length.
,Michigan Heating, Mechanical Code Manual D Test, Mechanical Law Exam, Mechanical A/C Service
Comprehensive Resource To Help You Ace 2026-2027 Exams Includes
Frequently Tested Questions With ELABORATED 100% Correct COMPLETE SOLUTIONS
Guaranteed Pass First Attempt!! Current Update!!
When adding a ducted return air to the system, some
pressure is used to move air through the return air duct,
so less pressure is available for the supply side of the
Total Ettective Length (TEL)
system. The only change in the formula to convert the
system pressure drop value to a friction rate value will be
the .
Using the information in question 5, calculate the friction
rate for a forced air furnace with a blower capacity of
1400 cfm and a pressure drop of 0.18 with a total ettective 0.006
length (TEL) of 280 feet of duct allowing for the addition
100 feet of return air duct.
With the friction rate known for the above duct system,
using the friction rate chart in appendix 2, round gal- 18"
vanized duct would be required
The procedure for sizing a duct system with multiple
supply and return air outlets creating multiple ettective
Largest
lengths is to size based on the ettective length
value.
Resistance created when air is forced through equipment,
or a device installed in the air stream translates to a Pressure Drop
across the component.
Available static pressure is the pressure that is available
for the straight duct runs and fittings after it is subtracted OEM Blower Table
from the external static pressure valve from the
Duct sizing is not based on the amount of pressure that the
blower produces but on the net pressure that is
Available
to move the air through the circulation path that produces
the most resistant to airflow.
,Michigan Heating, Mechanical Code Manual D Test, Mechanical Law Exam, Mechanical A/C Service
Comprehensive Resource To Help You Ace 2026-2027 Exams Includes
Frequently Tested Questions With ELABORATED 100% Correct COMPLETE SOLUTIONS
Guaranteed Pass First Attempt!! Current Update!!
When considering air velocity for noise control, the max-
imum velocity for the supply side trunk is fpm 900, 700
and fpm for the return air trunk using rigid duct.
Friction rate duct sizing is not the only criteria to design a
duct system. Velocity noise also needs to be considered.
IN most cases duct sizing that satisfies the friction rate
larger
procedure are too small to satisfy the velocity limit there-
fore two sizes are created. The final design always uses
the of these two sizes.
Excessive path (oversized ducts) CFM problems are re-
Installing and adjusting balancing dampers
solved by in appropriate locations.
The airflow rate that is required for a conditioned space
depends on either the sensible cooling load or heating
Room Air
load and on the temperature ditterence (TD) between the
supply air and the .
Using the psychrometric airflow calculation of section
1-13, cfm would be required if the manual J cooling
load was 24,000 btu's with a supply air temperature of 57 1283
degrees F and return air temperature of 74 degrees F with
an altitude correction factor of 1.
Using the psychrometric airflow calculation of section
1-13, cfm would be required if the manual J cooling
load was 62,000 btu's with a supply air temperature of 127 824
degrees F and return air temperature of 70 degrees F with
an altitude correction factor of 1.2
Once the design value for the blower cfm is known, the air
flow required for each room can be estimates by
Multiplying / Dividing
the blower cfm by the room load and then the by
the Manual J design load.
, Michigan Heating, Mechanical Code Manual D Test, Mechanical Law Exam, Mechanical A/C Service
Comprehensive Resource To Help You Ace 2026-2027 Exams Includes
Frequently Tested Questions With ELABORATED 100% Correct COMPLETE SOLUTIONS
Guaranteed Pass First Attempt!! Current Update!!
cfm is required for room with a 4000 btu room
load, a 1,000-blower cfm and a heating load of 30,000 133
btu's.
To achieve the heating and cooling factors, the design
Blower CFM
loads are divided into the
The cooling factor of would be required for a
room with a cooling load of 4000 btu's and a required 200 0.050
cfm airflow.
With a known cooling factor or 0.050 and a room sensible
300
load of 6,000 btu's, an estimated cfm is known.
When speed increases on a blower what direction does
up and to the right
the line move on the duct curve?
Normally the blower is a factory installed component,
however, one part of Manual D is used to see if blower
roughly compatible with
performance is the airflow and pressure require-
ment of the proposed air distribution system.
When air flows through straight duct, friction causes the
static pressure in the duct to decrease in the direction of
flow. Using the formula in section 4-1, a pressure drop of 0.25
would be the result of a friction rate of 0.10 and a
total duct length of 250 feet.
Panned joints and stud spaces are by ACCA. not endorsed
The pressure drop produce by supply air grilles, registers
and dittusers, return air grilles, and manual balancing
0.03
dampers is small. Manual D default value for any of these
items is .
