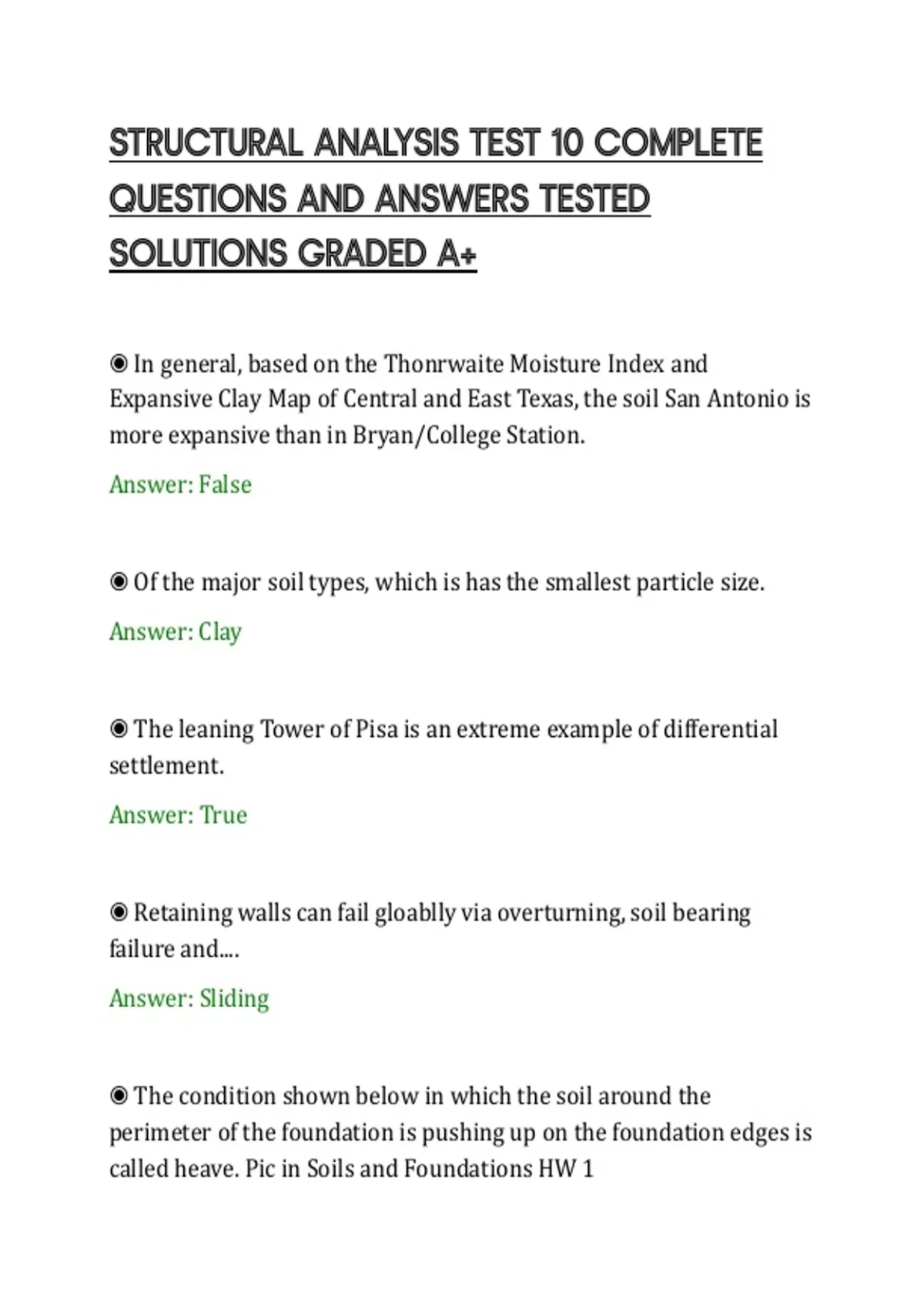

STRUCTURAL ANALYSIS TEST 10 COMPLETE
QUESTIONS AND ANSWERS TESTED
SOLUTIONS GRADED A+
◉ In general, based on the Thonrwaite Moisture Index and
Expansive Clay Map of Central and East Texas, the soil San Antonio is
more expansive than in Bryan/College Station.
Answer: False
◉ Of the major soil types, which is has the smallest particle size.
Answer: Clay
◉ The leaning Tower of Pisa is an extreme example of differential
settlement.
Answer: True
◉ Retaining walls can fail gloablly via overturning, soil bearing
failure and....
Answer: Sliding
◉ The condition shown below in which the soil around the
perimeter of the foundation is pushing up on the foundation edges is
called heave. Pic in Soils and Foundations HW 1
,Answer: True
◉ Frost depth is a phenomena in which the soil either gains or loses
moisture which in turn leads to expansive or subsidence in the
volume of the soil.
Answer: False
◉ The depth in which the soil moisture content is relatively constant
between the summer and winter periods is most nearly the
definition of....
Answer: Depth of Seasonal Moisture Variation
◉ Due to the prevalence of expansive soils and institutional nature
of their projects (expected to be used for 50-100 years), Texas A&M
University typically requires what type of the foundation system for
new construction projects?
Answer: Structural Slab over Void Space with Deep Foundations
◉ Isolated spread footings are most suitable for which of the
following scenarios?
Answer: Concrete columns in non-expansive soil with a high bearing
capacity
, ◉ Which of the bars in the retaining wall below serve as the primary
tension reinforcement? Pic in Soils and Foundations HW 2
Answer: Vertical Bars - B
◉ An auger-cast pile is an example of a shallow foundation.
Answer: False
◉ All conditions being equal, post-tensioned foundation are
generally cheaper that conventionally reinforced stiffened slab-on-
grade foundations.
Answer: True
◉ The purpose of draping the beam tendons (the drape up towards
the perimeter of the foundation) in a post-tensioned stiffened slab-
on-grade foundation is most nearly to.... Pic in Soils and Foundations
HW 2
Answer: Allow easier access for tensioning of the cable
◉ Stiffened slab-on-grade foundations on expansive soil are
designed and constructed to eliminate foundation movement due to
expansive soil.
Answer: False
