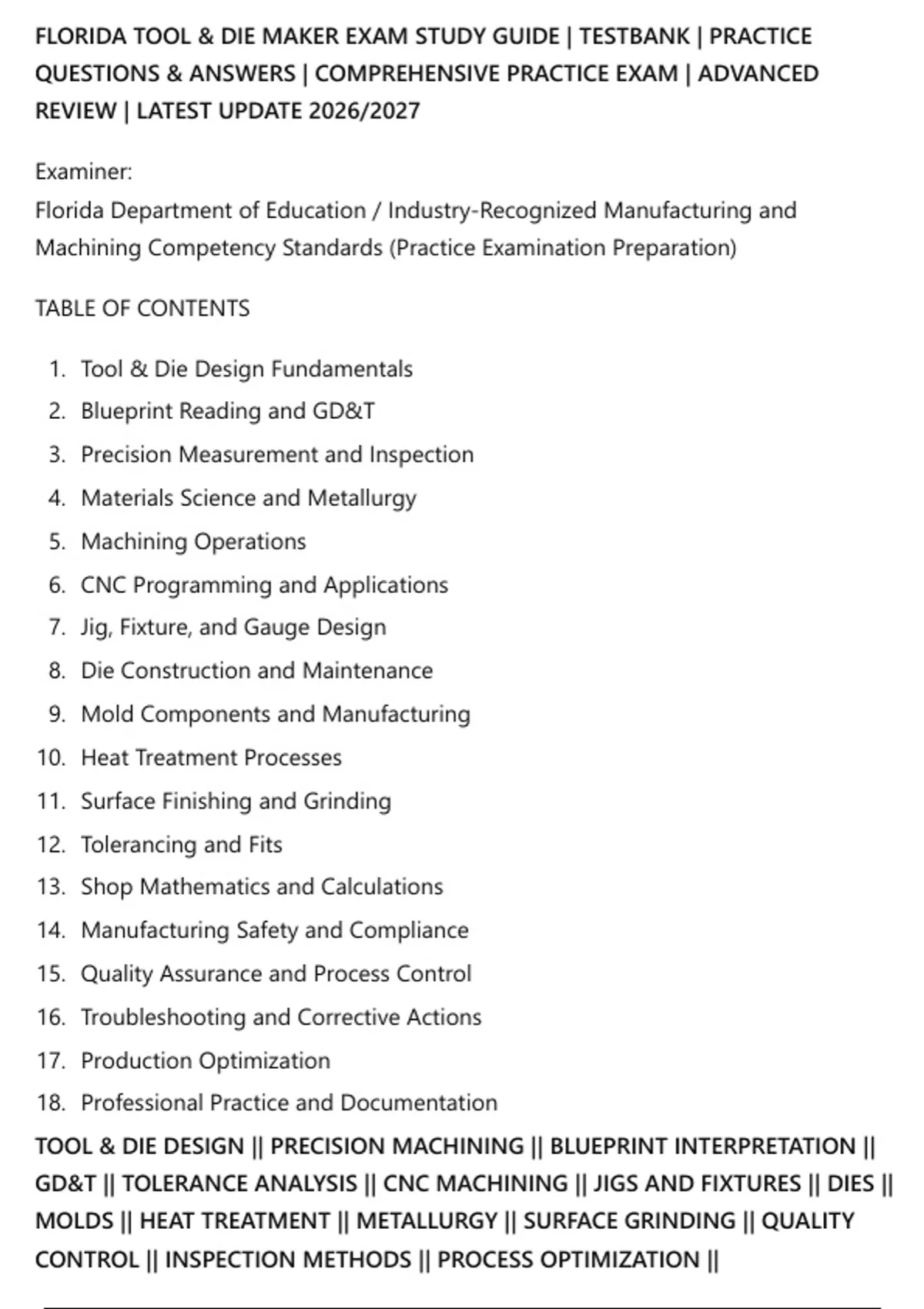

FLORIDA TOOL & DIE MAKER EXAM STUDY GUIDE | TESTBANK | PRACTICE
QUESTIONS & ANSWERS | COMPREHENSIVE PRACTICE EXAM | ADVANCED
REVIEW | LATEST UPDATE 2026/2027
Examiner:
Florida Department of Education / Industry-Recognized Manufacturing and
Machining Competency Standards (Practice Examination Preparation)
TABLE OF CONTENTS
1. Tool & Die Design Fundamentals
2. Blueprint Reading and GD&T
3. Precision Measurement and Inspection
4. Materials Science and Metallurgy
5. Machining Operations
6. CNC Programming and Applications
7. Jig, Fixture, and Gauge Design
8. Die Construction and Maintenance
9. Mold Components and Manufacturing
10. Heat Treatment Processes
11. Surface Finishing and Grinding
12. Tolerancing and Fits
13. Shop Mathematics and Calculations
14. Manufacturing Safety and Compliance
15. Quality Assurance and Process Control
16. Troubleshooting and Corrective Actions
17. Production Optimization
18. Professional Practice and Documentation
TOOL & DIE DESIGN || PRECISION MACHINING || BLUEPRINT INTERPRETATION ||
GD&T || TOLERANCE ANALYSIS || CNC MACHINING || JIGS AND FIXTURES || DIES ||
MOLDS || HEAT TREATMENT || METALLURGY || SURFACE GRINDING || QUALITY
CONTROL || INSPECTION METHODS || PROCESS OPTIMIZATION ||
,MANUFACTURING SAFETY || CALIBRATION || FITS AND CLEARANCES ||
TROUBLESHOOTING || PROFESSIONAL PRACTICE
QUESTION 1.
A progressive stamping die consistently produces holes that drift 0.004 in. from true
position after several thousand cycles. Inspection confirms punch diameters remain
within tolerance, and strip feed accuracy is verified. Which condition should be
investigated first?
A. Wear in guide components causing die misalignment during closure
B. Excessive hardness of the strip material
C. Insufficient lubrication at the press bearings
D. Oversized pilot holes in the strip
Correct Answer: A. Wear in guide components causing die misalignment
during closure
Explanation: Positional drift that develops gradually while punch dimensions
remain acceptable often indicates wear in guide pins, bushings, or other alignment
components. Misalignment during closure can shift feature locations without
significantly affecting hole size. The other options may influence wear, force
requirements, or process efficiency but are less directly associated with progressive
positional drift.
────────────────────────────────────────
QUESTION 2.
A drawing specifies a shaft diameter of 1.2500 ± 0.0005 in. mating with a bore of
1.2515 ± 0.0005 in. What is the minimum possible clearance?
A. 0.0000 in.
B. 0.0005 in.
C. 0.0010 in.
D. 0.0025 in.
, Correct Answer: B. 0.0005 in.
Explanation: Minimum clearance occurs when the shaft is at maximum material
condition and the bore is at minimum size. The largest shaft is 1.2505 in., and the
smallest bore is 1.2510 in. Subtracting yields a minimum clearance of 0.0005 in.
The other values do not represent the worst-case condition.
────────────────────────────────────────
QUESTION 3.
During die tryout, excessive burr formation appears only on one side of a blanked
component. Which conclusion is most justified?
A. The press tonnage is too low.
B. The die clearance is likely uneven around the cutting perimeter.
C. The material hardness is below specification.
D. The blank holder force is excessive.
Correct Answer: B. The die clearance is likely uneven around the cutting
perimeter.
Explanation: Localized burrs commonly indicate unequal punch-to-die clearance.
Uneven clearance changes fracture characteristics and produces asymmetrical edge
quality. Low tonnage, soft material, or excessive blank holder force would typically
affect the part more uniformly rather than one specific side.
────────────────────────────────────────
QUESTION 4.
A toolmaker must verify flatness of a precision ground plate to within 0.0002 in.
Which inspection method provides the highest confidence?
A. Steel rule and visual inspection
B. Vernier caliper measurement at corners
, C. Surface plate and feeler gauges only
D. Surface plate with precision indicator sweep across the surface
Correct Answer: D. Surface plate with precision indicator sweep across the
surface
Explanation: Flatness evaluation requires assessing variation across the entire
surface. A precision indicator referenced to a certified surface plate provides
detailed measurements and reveals localized deviations. Simpler methods lack the
resolution and coverage required for such a tight tolerance.
────────────────────────────────────────
QUESTION 5.
A punch fabricated from high-carbon tool steel experiences premature chipping at
corners despite proper heat treatment records. What is the most likely corrective
action?
A. Increase edge sharpness further
B. Reduce punch diameter slightly
C. Introduce appropriate corner radii to reduce stress concentration
D. Increase feed rate during operation
Correct Answer: C. Introduce appropriate corner radii to reduce stress
concentration
Explanation: Sharp corners create stress concentrations that promote crack
initiation and chipping. Properly engineered radii distribute stresses more
uniformly and improve tool life. The other options either increase risk or do not
directly address the failure mechanism.
────────────────────────────────────────
QUESTION 6.
