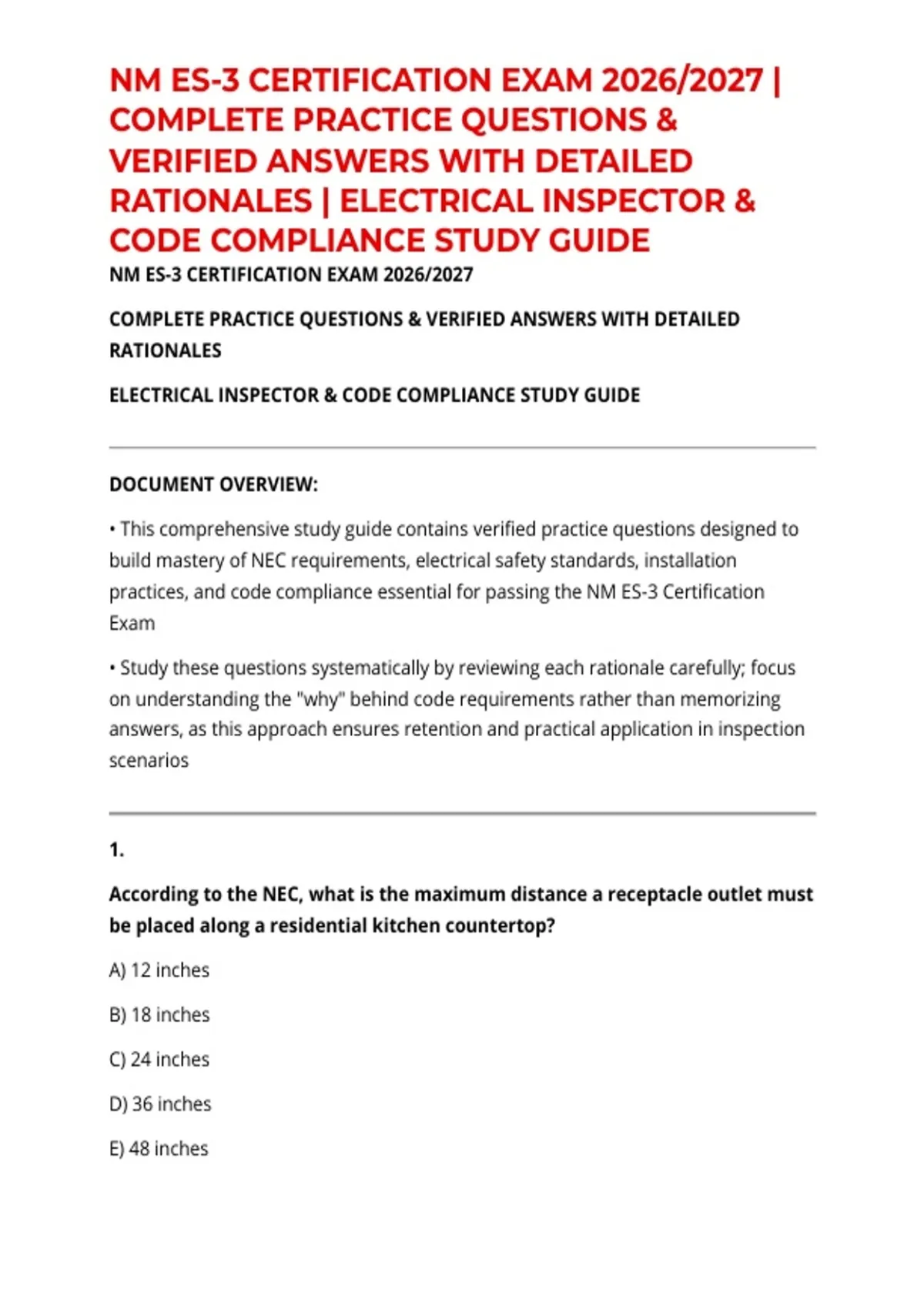

NM ES-3 CERTIFICATION EXAM 2026/2027 |
COMPLETE PRACTICE QUESTIONS &
VERIFIED ANSWERS WITH DETAILED
RATIONALES | ELECTRICAL INSPECTOR &
CODE COMPLIANCE STUDY GUIDE
NM ES-3 CERTIFICATION EXAM 2026/2027
COMPLETE PRACTICE QUESTIONS & VERIFIED ANSWERS WITH DETAILED
RATIONALES
ELECTRICAL INSPECTOR & CODE COMPLIANCE STUDY GUIDE
DOCUMENT OVERVIEW:
• This comprehensive study guide contains verified practice questions designed to
build mastery of NEC requirements, electrical safety standards, installation
practices, and code compliance essential for passing the NM ES-3 Certification
Exam
• Study these questions systematically by reviewing each rationale carefully; focus
on understanding the "why" behind code requirements rather than memorizing
answers, as this approach ensures retention and practical application in inspection
scenarios
1.
According to the NEC, what is the maximum distance a receptacle outlet must
be placed along a residential kitchen countertop?
A) 12 inches
B) 18 inches
C) 24 inches
D) 36 inches
E) 48 inches
,Correct Answer: B is correct - Receptacle outlets must be installed so that no
point along the kitchen countertop is more than 24 inches from a receptacle
outlet, measured horizontally along the countertop.
Rationale: NEC Section 210.52(C) requires countertop receptacles in kitchens to be
spaced no more than 24 inches apart when measured along the countertop
surface. This ensures convenient access for appliances and reduces the need for
extension cords, which are fire hazards. The 24-inch measurement is a critical
safety requirement that electrical inspectors must verify during residential
inspections.
2.
What is the minimum wire size permitted for branch circuits supplying
lighting outlets in a dwelling unit?
A) 12 AWG
B) 10 AWG
C) 8 AWG
D) 6 AWG
E) 4 AWG
Correct Answer: A is correct - The minimum wire size for branch circuits
supplying lighting outlets in dwellings is 12 AWG copper or 10 AWG aluminum.
Rationale: NEC Section 210.3 establishes minimum conductor sizes for branch
circuits. For general lighting and receptacle circuits in residential installations, 12
AWG copper is the smallest permitted size. Using smaller wire would create
unacceptable voltage drop and overcurrent protection issues. Aluminum
conductors are one size larger (10 AWG minimum) due to their higher resistance
compared to copper.
3.
,How many 15-ampere branch circuits are required for general lighting in a
residence with an area of 2,000 square feet?
A) 2 circuits
B) 3 circuits
C) 4 circuits
D) 5 circuits
E) 6 circuits
Correct Answer: C is correct - A minimum of 4 branch circuits is required for
general lighting in a 2,000 square foot residence, calculated at 3 watts per
square foot.
Rationale: NEC Section 220.12 requires a minimum lighting load of 3 watts per
square foot for dwelling units. For 2,000 sq ft: 2,000 × 3 = 6,000 watts. Dividing by
15 amps at 120 volts (1,800 watts per circuit): 6,000 ÷ 1,800 = 3.33, which rounds up
to 4 circuits. This calculation ensures adequate lighting capacity and prevents
overloading circuits with too many fixtures.
4.
What is the maximum overcurrent protection rating for a 12 AWG copper
conductor used in a branch circuit?
A) 15 amps
B) 20 amps
C) 25 amps
D) 30 amps
E) 40 amps
Correct Answer: B is correct - A 12 AWG copper conductor must be protected
by an overcurrent device rated not to exceed 20 amperes.
, Rationale: NEC Table 310.16 establishes the ampacity of various wire sizes under
different conditions. A 12 AWG copper conductor has an ampacity of 20 amperes
under normal conditions. The overcurrent protection device must not exceed this
ampacity rating to prevent overheating of the wire, which could cause insulation
failure and fire hazards. This is a fundamental safety principle in electrical design
and inspection.
5.
In a dwelling unit, what is the maximum distance from an entrance to the
location of the service disconnecting means?
A) 25 feet
B) 50 feet
C) 75 feet
D) 100 feet
E) No specific distance requirement
Correct Answer: A is correct - The service disconnecting means must be
located at a readily accessible location nearest to where the service
conductors enter the building, typically not more than 25 feet away.
Rationale: NEC Section 230.70 requires the service disconnecting means to be
located at a readily accessible location outside or inside nearest to where the
service conductors enter the building. This requirement ensures rapid access to
shut off all power in emergencies. While the NEC doesn't specify an absolute
maximum distance, industry standards and practical inspection practices recognize
the 25-foot guideline as a reasonable maximum to meet the "nearest to the point
of entry" requirement.
6.
