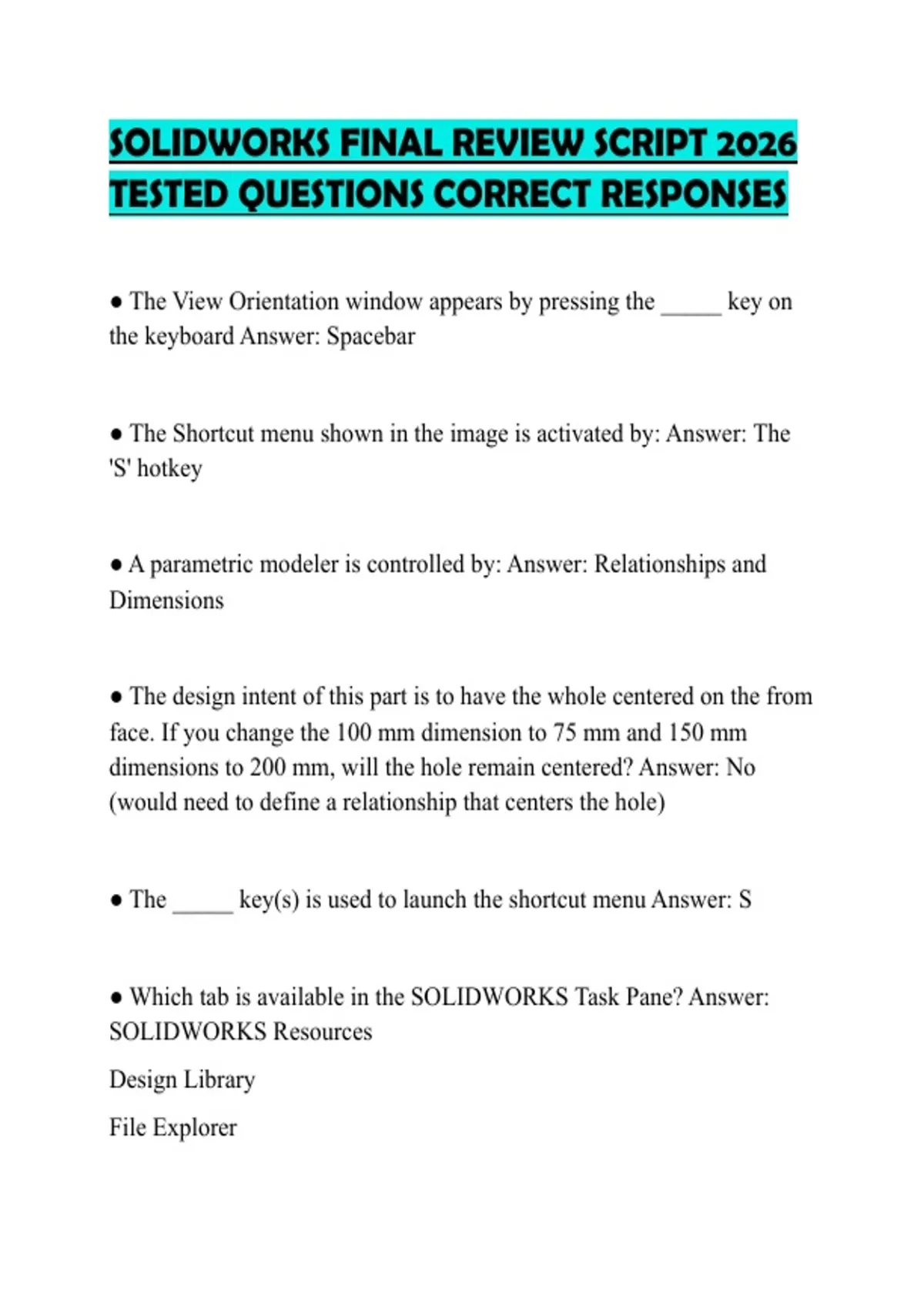

SOLIDWORKS FINAL REVIEW SCRIPT 2026
TESTED QUESTIONS CORRECT RESPONSES
● The View Orientation window appears by pressing the _____ key on
the keyboard Answer: Spacebar
● The Shortcut menu shown in the image is activated by: Answer: The
'S' hotkey
● A parametric modeler is controlled by: Answer: Relationships and
Dimensions
● The design intent of this part is to have the whole centered on the from
face. If you change the 100 mm dimension to 75 mm and 150 mm
dimensions to 200 mm, will the hole remain centered? Answer: No
(would need to define a relationship that centers the hole)
● The _____ key(s) is used to launch the shortcut menu Answer: S
● Which tab is available in the SOLIDWORKS Task Pane? Answer:
SOLIDWORKS Resources
Design Library
File Explorer
, View Palette
Appearances, Scenes, Decals
Custom Properties
SOLIDWORKS Forum
● One way to remove an existing sketch is to select it and then press the
_____ key on the keyboard Answer: Delete
● To select multiple sketch entities, press and hold down the _____ key
on the keyboard while selecting multiple entities Answer: Ctrl
● While sketching a _____, you can switch directly to the Arc tool
without clicking the Arc tool icon Answer: Line (auto-transitioning)
● While in sketch mode, the number displayed to the right of the cursor
defines the sketch element's exact size. Therefore there is no need to add
a dimension to set the dimensional value. Answer: False
● Which of the following is NOT a type of arc in SolidWorks? Answer:
Equal Radius Arc
(3 Point Arc, Center Point Arc, and Tangent Arc are)
● What type of arc can be transitioned to directly from sketching a line?
Answer: Tangent Arc
