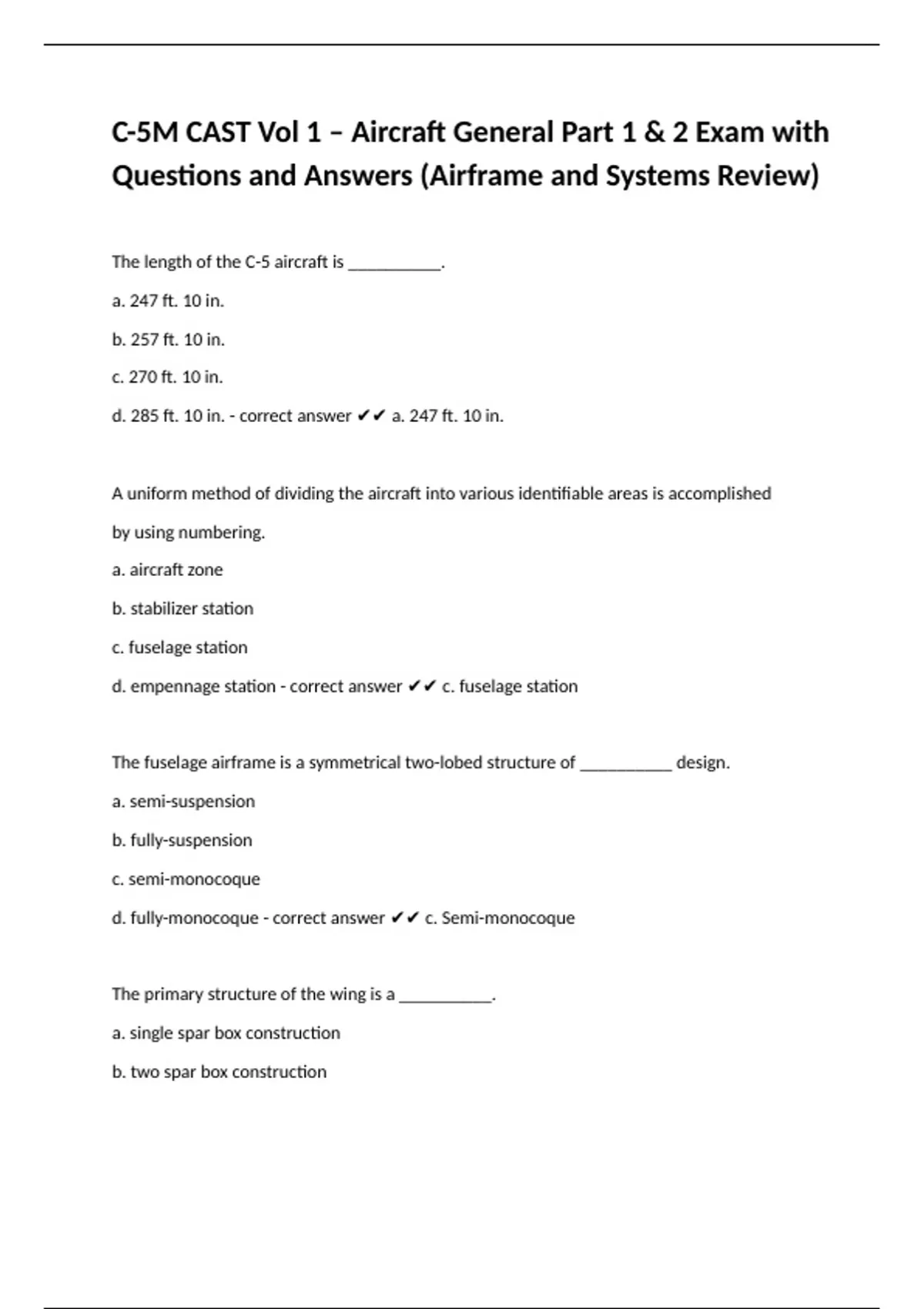

C-5M CAST Vol 1 – Aircraft General Part 1 & 2 Exam with
Questions and Answers (Airframe and Systems Review)
The length of the C-5 aircraft is __________.
a. 247 ft. 10 in.
b. 257 ft. 10 in.
c. 270 ft. 10 in.
d. 285 ft. 10 in. - correct answer ✔✔ a. 247 ft. 10 in.
A uniform method of dividing the aircraft into various identifiable areas is accomplished
by using numbering.
a. aircraft zone
b. stabilizer station
c. fuselage station
d. empennage station - correct answer ✔✔ c. fuselage station
The fuselage airframe is a symmetrical two-lobed structure of __________ design.
a. semi-suspension
b. fully-suspension
c. semi-monocoque
d. fully-monocoque - correct answer ✔✔ c. Semi-monocoque
The primary structure of the wing is a __________.
a. single spar box construction
b. two spar box construction
,c. four spar beam construction
d. multispar box construction - correct answer ✔✔ d. multispar box construction
The major components of the empennage are?
a. elevators
b. rudders
c. vertical and horizontal stabilizers
d. all of the above - correct answer ✔✔ d. all of the above
Where are the Main Landing Gear (MLG) pods located?
a. left-hand side of the fuselage ONLY
b. right-hand side of the fuselage ONLY
c. left and right-hand sides of the fuselage
d. none of the above - correct answer ✔✔ c. left and right-hand sides of the fuselage
The Alternating Current (AC) electrical distribution center is located in which
compartment?
a. relief crew
b. cargo
c. flight station
d. troop/courier - correct answer ✔✔ d. troop/courier
A stowage locker for small arms is located in which compartment?
a. troop
b. relief crew
c. flight station
, d. cargo - correct answer ✔✔ b. relief crew
What forms the closure for the forward end of the cargo compartment area?
a. visor door
b. forward ramp
c. cargo doors
d. both a and b - correct answer ✔✔ d. both a and b
Which of the following is considered among the MOST highly flammable areas of the
aircraft?
a. oil tanks
b. liquid oxygen converters
c. hydraulic system reservoirs
d. all of the above - correct answer ✔✔ d. all of the above
The C-5 aircraft's Fire Suppression System (FSS) uses__________ for fire suppression.
a. liquid nitrogen
b. water
c. Halon 1201
d. none of the above - correct answer ✔✔ a. liquid nitrogen
Of the seven windows located in the flight compartment, which are fabricated of three
tempered glass plies?
a. Main windows
b. Center windows
c. Clear vision windows
