surname names
Number Number
Morning (Time: 1 hour 10 minutes) Paper
5
Tier
Marks
ruler

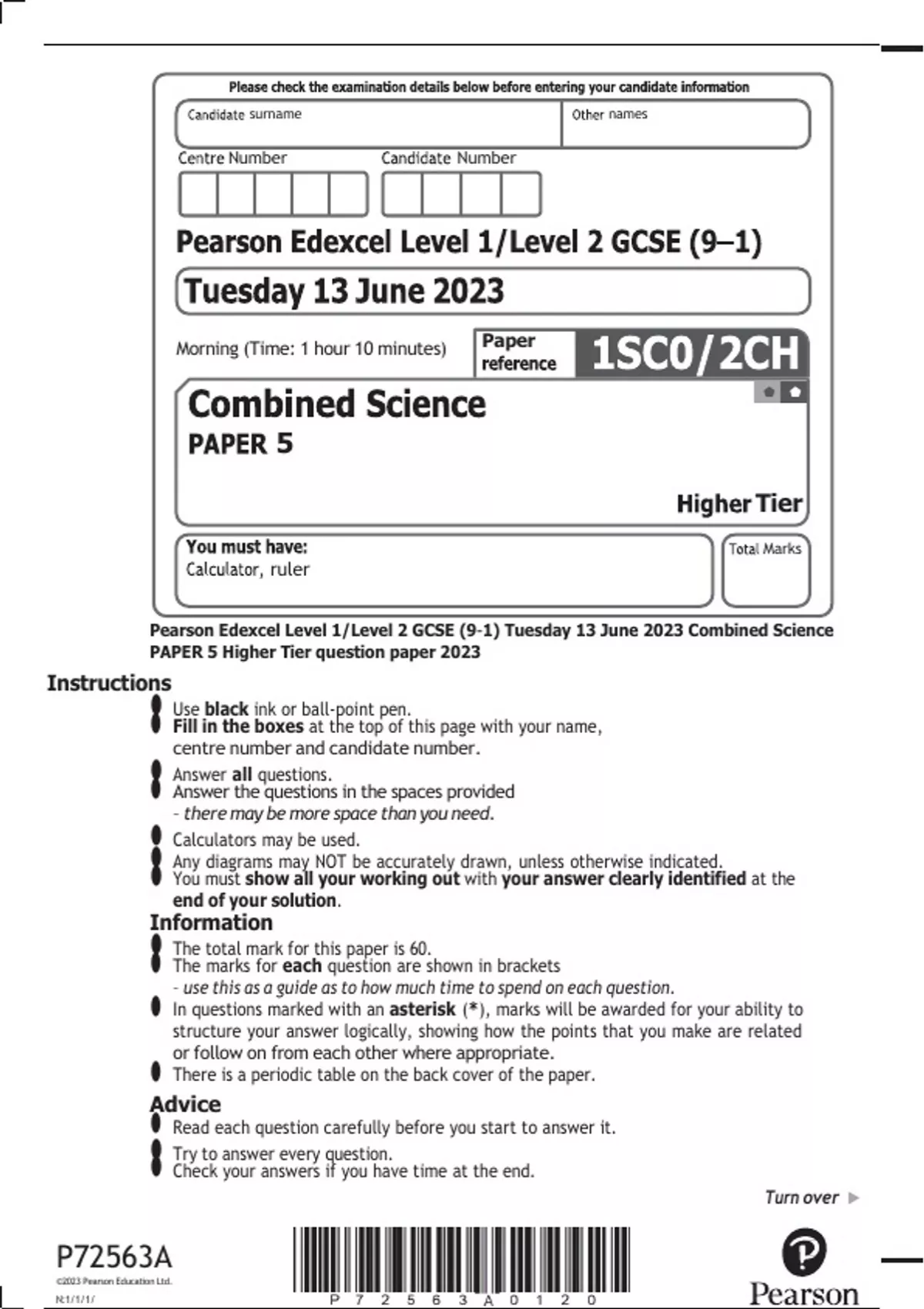

Pearson Edexcel Level 1/Level 2 GCSE (9–1) Tuesday 13 June 2023 Combined Science
PAPER 5 Higher Tier question paper 2023
Instructions
•• Use black ink or ball-point pen.
Fill in the boxes at the top of this page with your name,
centre number and candidate number.
•• Answer all questions.
Answer the questions in the spaces provided
– there may be more space than you need.
•• Calculators may be used.
• You
Any diagrams may NOT be accurately drawn, unless otherwise indicated.
must show all your working out with your answer clearly identified at the
end of your solution.
Information
•• The total mark for this paper is 60.
The marks for each question are shown in brackets
• Instructure
– use this as a guide as to how much time to spend on each question.
questions marked with an asterisk (*), marks will be awarded for your ability to
your answer logically, showing how the points that you make are related
•
or follow on from each other where appropriate.
There is a periodic table on the back cover of the paper.
Advice
• Read each question carefully before you start to answer it.
•• Try to answer every question.
Check your answers if you have time at the end.
Turn over
P72563A
©2023 Pearson Education Ltd.
N:1/1/1/
, Answer ALL questions. Write your answers in the spaces provided.
Some questions must be answered with a cross in a box . If you change your mind about an
answer, put a line through the box and then mark your new answer with a cross .
1 A student used the apparatus shown in Figure 1 to investigate the reaction between
marble chips and dilute hydrochloric acid.
gas syringe
bung
20 cm3 dilute hydrochloric acid
10.0 g marble chips
Figure 1
The student recorded the volume of gas every minute as shown in Figure 2.
time in minutes 0 1 2 3 4 5 6
volume of gas in cm3 0 52 78 91 97 100 100
Figure 2
(a) On the grid, plot the results shown in Figure 2.
Draw a curve of best fit.
(3)
volume of 100
gas in cm3
90
80
70
60
50
40
30
20
10
0
0 1 2 3 4 5 6
time in minutes
2
■■■■
, (b) Rate of reaction can be calculated using
volume of gas produced in 1 minute
rate of reaction =
1 minute
Figure 3 shows the rates of reaction calculated from the results of this experiment.
The rate of reaction for the time interval 2 to 3 minutes is missing.
0 to 1 1 to 2 2 to 3 3 to 4 4 to 5
time interval
minute minutes minutes minutes minutes
rate of reaction in
52 26 6 3
cm3 min–1
Figure 3
(i) Calculate the rate of reaction for the time interval 2 to 3 minutes.
(1)
. . . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. .. . . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . . .. . .. .. . . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. .. . . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . . ......................
rate of reaction = .......................... cm3 min–1
(ii) State and explain what happens to the rate of reaction as the acid reacts with
the marble chips in this experiment.
(3)
. . . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. .. . . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . . .. . .. .. . . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. .. . . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . . ......................
. . . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. .. . . .. . .. . .. . .. . .. . .. . .. . .. . .. . . . . .. . .. . .. . .. . .. . .. . .. . .. . . .. . .. .. . . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. .. . . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . . ......................
. . . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. .. . . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . . .. . .. .. . . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. .. . . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . . ......................
. . . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. .. . . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . . .. . .. .. . . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. .. . . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . . ......................
. . . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. .. . . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . . .. . .. .. . . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. .. . . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . . ......................
(c) The student repeated the experiment using the same volume of acid and the
same mass of marble chips but used smaller marble chips.
All other conditions remained the same.
The student found that the reaction with the smaller marble chips was faster to
start with but produced the same volume of gas.
Using this information, draw a line on the grid to show the results for the reaction
with the smaller marble chips.
Label this line ‘C’.
(2)
(Total for Question 1 = 9 marks)
3
