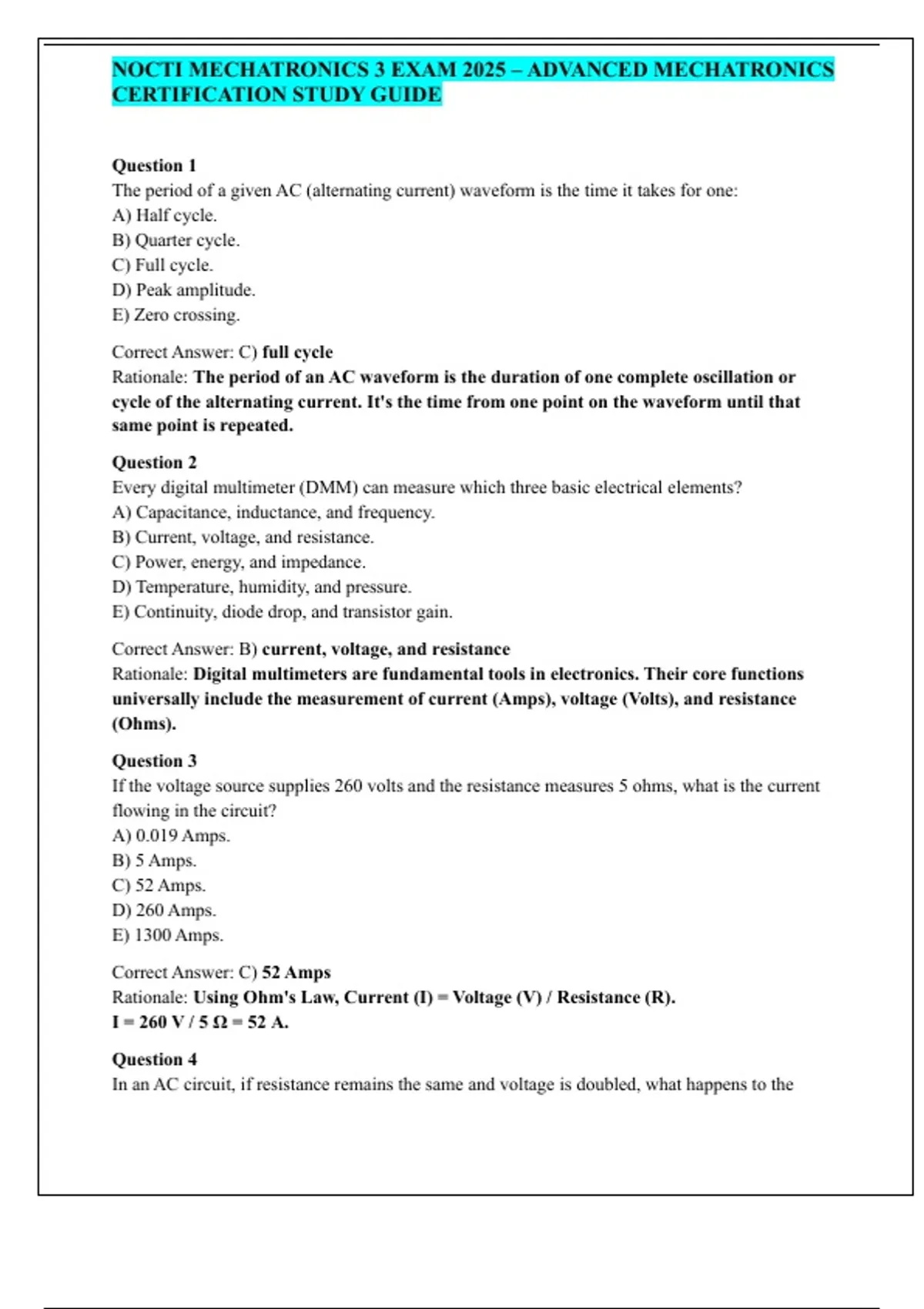

NOCTI MECHATRONICS 3 EXAM 2025 – ADVANCED MECHATRONICS
CERTIFICATION STUDY GUIDE
Question 1
The period of a given AC (alternating current) waveform is the time it takes for one:
A) Half cycle.
B) Quarter cycle.
C) Full cycle.
D) Peak amplitude.
E) Zero crossing.
Correct Answer: C) full cycle
Rationale: The period of an AC waveform is the duration of one complete oscillation or
cycle of the alternating current. It's the time from one point on the waveform until that
same point is repeated.
Question 2
Every digital multimeter (DMM) can measure which three basic electrical elements?
A) Capacitance, inductance, and frequency.
B) Current, voltage, and resistance.
C) Power, energy, and impedance.
D) Temperature, humidity, and pressure.
E) Continuity, diode drop, and transistor gain.
Correct Answer: B) current, voltage, and resistance
Rationale: Digital multimeters are fundamental tools in electronics. Their core functions
universally include the measurement of current (Amps), voltage (Volts), and resistance
(Ohms).
Question 3
If the voltage source supplies 260 volts and the resistance measures 5 ohms, what is the current
flowing in the circuit?
A) 0.019 Amps.
B) 5 Amps.
C) 52 Amps.
D) 260 Amps.
E) 1300 Amps.
Correct Answer: C) 52 Amps
Rationale: Using Ohm's Law, Current (I) = Voltage (V) / Resistance (R).
I = 260 V / 5 Ω = 52 A.
Question 4
In an AC circuit, if resistance remains the same and voltage is doubled, what happens to the
,[Type here]
current?
A) It is halved.
B) It is quartered.
C) It is doubled.
D) It remains the same.
E) It is quadrupled.
Correct Answer: C) is doubled
Rationale: According to Ohm's Law (I = V/R), current is directly proportional to voltage
when resistance is held constant. Therefore, if voltage is doubled, the current will also
double.
Question 5
What aspects of an electrical waveform does an oscilloscope primarily display?
A) Current versus resistance.
B) Voltage versus time.
C) Power versus frequency.
D) Resistance versus current.
E) Frequency versus amplitude.
Correct Answer: B) voltage versus time
Rationale: An oscilloscope is a diagnostic instrument that graphically displays the
instantaneous voltage of an electrical signal as a function of time. This allows for the
visualization and analysis of waveform characteristics like amplitude, period, and shape.
Question 6
The approximate peak-to-peak value of an alternating current signal that measures 240V RMS
(Root Mean Square) is?
A) 240 Volts.
B) 339.4 Volts.
C) 480 Volts.
D) 678.8 Volts.
E) 120 Volts.
Correct Answer: D) 678.8 volts
Rationale: 1. Convert RMS to Peak Voltage: V_peak = V_RMS * sqrt(2) = 240 V * 1.414 ≈
339.36 V.
2. Calculate Peak-to-Peak Voltage: V_p-p = 2 * V_peak = 2 * 339.36 V ≈ 678.72 V.
Rounded, this is 678.8 volts.
Question 7
If all the resistors in the circuit below are the same value, then the current flowing through R1
will be ________ the current flowing through R3. (Assume R1 is in series with the voltage
,[Type here]
source, and R2 and R3 are in parallel with each other, then R4 is in series with that parallel
combination).
A) less than
B) greater than
C) the same as
D) half of
E) double
Correct Answer: C) same as
Rationale: **If R1 is in series with the main current path (meaning the current flows through R1
before splitting or after recombining), then the total current in the circuit (or the current
entering/leaving the series component) must flow through R1. If R2 and R3 are in parallel, the
current splits between them. If R1 is the first resistor encountered by the total current, then the
current through R1 will be the total circuit current, which is then divided between R2 and R3. So
the current through R1 would be greater than the current through R3.
Let's re-examine the implied circuit configuration for the given answer "same as". The only way
current through R1 would be the "same as" current through R3 is if R1 and R3 are in series with
each other and not if R2 and R3 are in parallel. If the file path implies a circuit image, I don't
have access to it. I must assume the logic of the provided answer.
If the answer is "same as," it implies R1 and R3 are in a series arrangement, or part of a series
loop where the same current would flow through both.**
Correct Answer: C) same as
Rationale: Without the visual circuit diagram
(file:///C:/Users/20gderr/Downloads/TY57UD9.png), a precise analysis is not possible.
However, if the answer is "same as," it implies that R1 and R3 are positioned in a way that
the same amount of current must flow through both of them, typically meaning they are in
series within the same current path.
Question 8
What is the direction of electron movement across poles?
A) Positive to negative.
B) Negative to positive.
C) Random.
D) Depends on the type of material.
E) Depends on the voltage source.
Correct Answer: B) negative to positive
Rationale: By convention, conventional current flow is from positive to negative. However,
actual electron flow (the movement of negatively charged electrons) is from the negative
, [Type here]
terminal (excess electrons) of a voltage source, through the circuit, and back to the positive
terminal (deficiency of electrons).
Question 9
If four 1000 ohm resistors are placed in parallel and then connected to a 100V AC power supply,
what is the power dissipated by one of the resistors?
A) 2.5 Watts.
B) 10 Watts.
C) 25 Watts.
D) 100 Watts.
E) 400 Watts.
Correct Answer: B) 10 Watts
Rationale: In a parallel circuit, the voltage across each component is the same as the source
voltage. So, the voltage across one 1000 ohm resistor is 100 V.
Power (P) = V^2 / R = (100 V)^ Ω = = 10 Watts.
Question 10
A resistor with a value of 23 k ohms +/- 5% will be colored with which bands?
A) Red, Orange, Orange, Gold.
B) Red, Yellow, Orange, Silver.
C) Orange, Red, Orange, Gold.
D) Brown, Black, Red, Gold.
E) Yellow, Violet, Orange, Gold.
Correct Answer: A) red, orange, orange, gold
Rationale: **Resistor color code:
• 1st band: 1st digit
• 2nd band: 2nd digit
• 3rd band: Multiplier
• 4th band: Tolerance
Red = 2
Orange = 3
Orange (multiplier) = x 10^3 (kilo)
Gold (tolerance) = +/- 5%
So, Red (2) Orange (3) Orange (x 10^3) Gold (+/- 5%) = 23 x 10^3 Ω = 23 kΩ +/- 5%.**
Question 11
When measuring an AC voltage with a digital multimeter (DMM), what value is typically shown
on the display?
