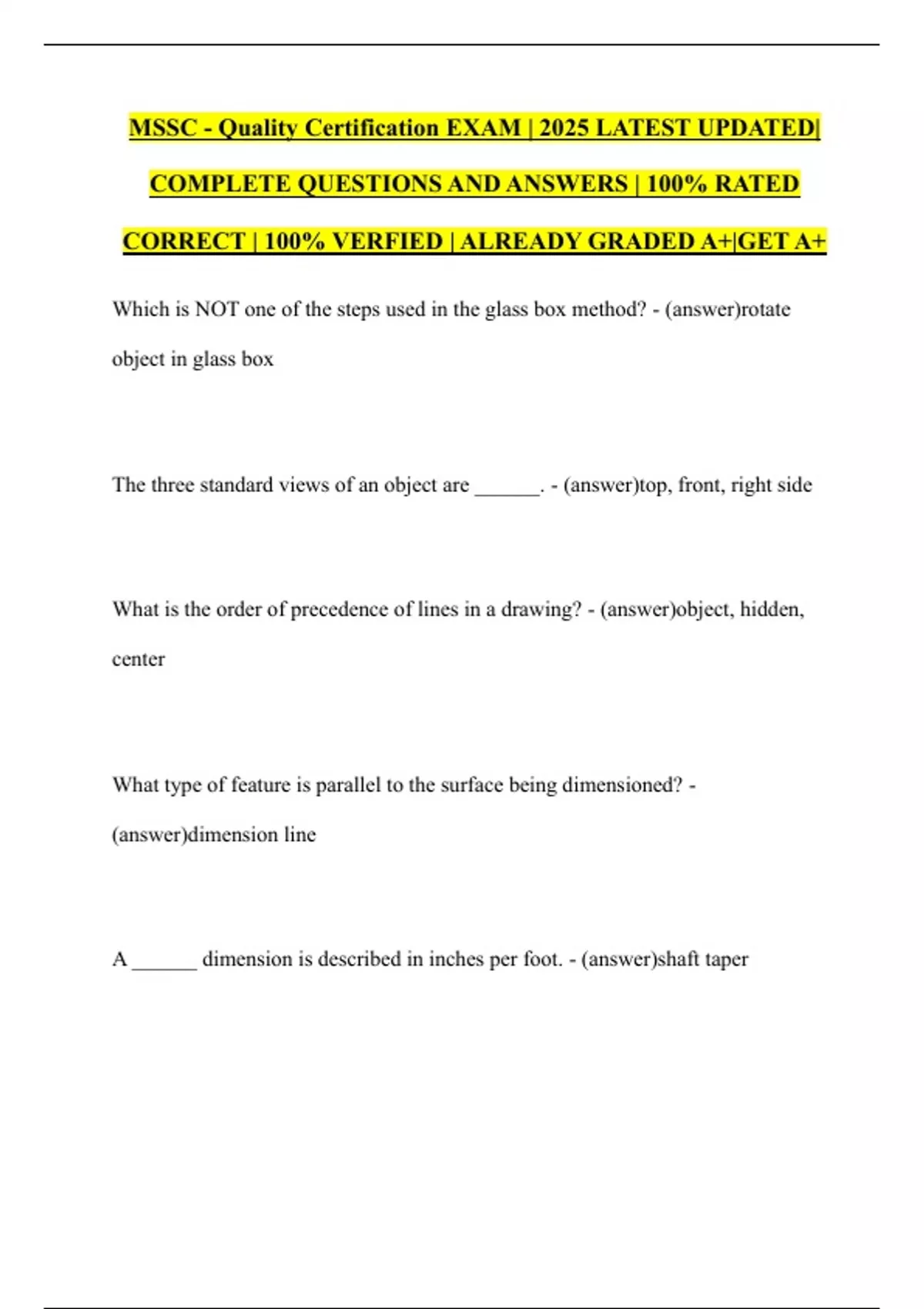

MSSC - Quality Certification EXAM | 2025 LATEST UPDATED|
COMPLETE QUESTIONS AND ANSWERS | 100% RATED
CORRECT | 100% VERFIED | ALREADY GRADED A+|GET A+
Which is NOT one of the steps used in the glass box method? - (answer)rotate
object in glass box
The three standard views of an object are ______. - (answer)top, front, right side
What is the order of precedence of lines in a drawing? - (answer)object, hidden,
center
What type of feature is parallel to the surface being dimensioned? -
(answer)dimension line
A ______ dimension is described in inches per foot. - (answer)shaft taper
,To establish on a drawing that 1/4 inch equals 1 inch, the designer would write
______. - (answer)1/4 = 1
Section lines on a blueprint include _______. - (answer)a surface that has been cut
In a threaded fastener assembly what is designed to protect the threads? -
(answer)shank
The minor diameter of a screw thread is measured at the ______. - (answer)root of
screw thread
The minor diameter of a threaded fastener is ______. - (answer)the major diameter
minus the thread height
How do you determine the grade of a bolt? - (answer)number of lines on the head
+2 indicates the grade
, A screw with National fine thread is represented on a drawing with what
designation? - (answer)NF
Metals treated by ______ processes become soft. - (answer)annealing
A running fit is also called a(n) ______. - (answer)sliding fit
The term ______ refers to a physical portion of a part. - (answer)feature
A(n) _______ is a theoretically perfect line, point or pane that is located by a
similar feature or part. - (answer)datum
GD&T _________________. - (answer)allows certain tolerances on part features
to be increased
A feature control frame is not used to describe ______. - (answer)measurements
