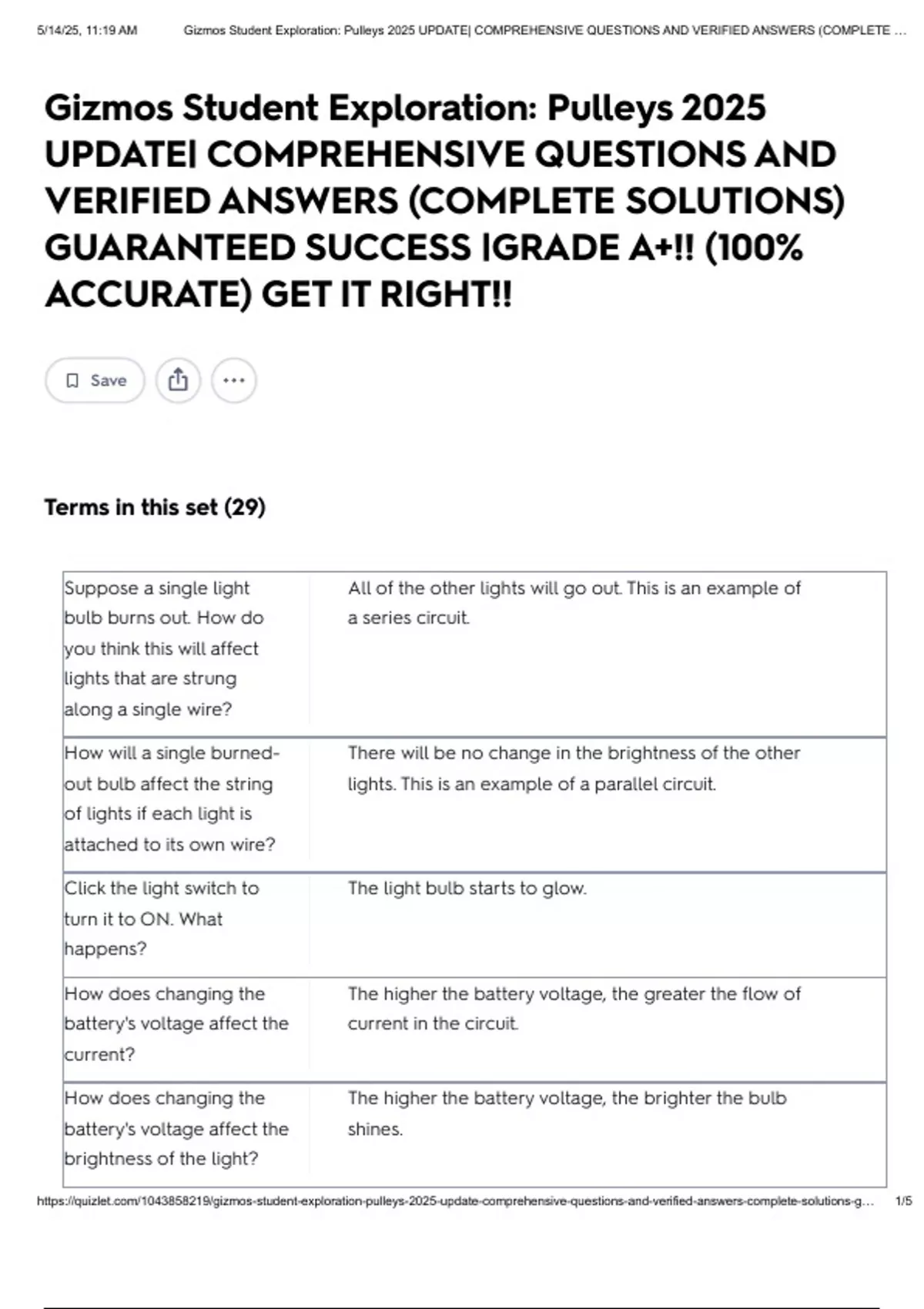

Gizmos Student Exploration: Pulleys 2025
UPDATE| COMPREHENSIVE QUESTIONS AND
VERIFIED ANSWERS (COMPLETE SOLUTIONS)
GUARANTEED SUCCESS |GRADE A+!! (100%
ACCURATE) GET IT RIGHT!!
Save
Terms in this set (29)
Suppose a single light All of the other lights will go out. This is an example of
bulb burns out. How do a series circuit.
you think this will affect
lights that are strung
along a single wire?
How will a single burned- There will be no change in the brightness of the other
out bulb affect the string lights. This is an example of a parallel circuit.
of lights if each light is
attached to its own wire?
Click the light switch to The light bulb starts to glow.
turn it to ON. What
happens?
How does changing the The higher the battery voltage, the greater the flow of
battery's voltage affect the current in the circuit.
current?
How does changing the The higher the battery voltage, the brighter the bulb
battery's voltage affect the shines.
brightness of the light?
https://quizlet.com/1043858219/gizmos-student-exploration-pulleys-2025-update-comprehensive-questions-and-verified-answers-complete-solutions-g… 1/5
, 5/14/25, 11:19 AM Gizmos Student Exploration: Pulleys 2025 UPDATE| COMPREHENSIVE QUESTIONS AND VERIFIED ANSWERS (COMPLETE …
Remove the wire. What The current stops and the bulb stops glowing.
happens?
How do you think The flow of the current will decrease due to the
increasing the resistance resistance.
in a circuit will affect the
current in the wire?
Is the current the same The same
throughout, or does it
change?
What is the current in the 2.7 amp
wire now?
What is the mathematical V= IxR
relationship between
voltage (V), resistance (R),
and current (I)?
Apply: The light bulb is I=V/R
also a resistor. Place the
light bulb in the circuit,
then use Ohm's law to find
the resistance of the light
bulb. What is it?
Observe: Turn the light It takes up electricity which causes the other bulbs to
switch ON and observe dim.
the light bulb. Then start
replacing the wire
segments with new light
bulbs.
How does each new light
bulb affect the others?
