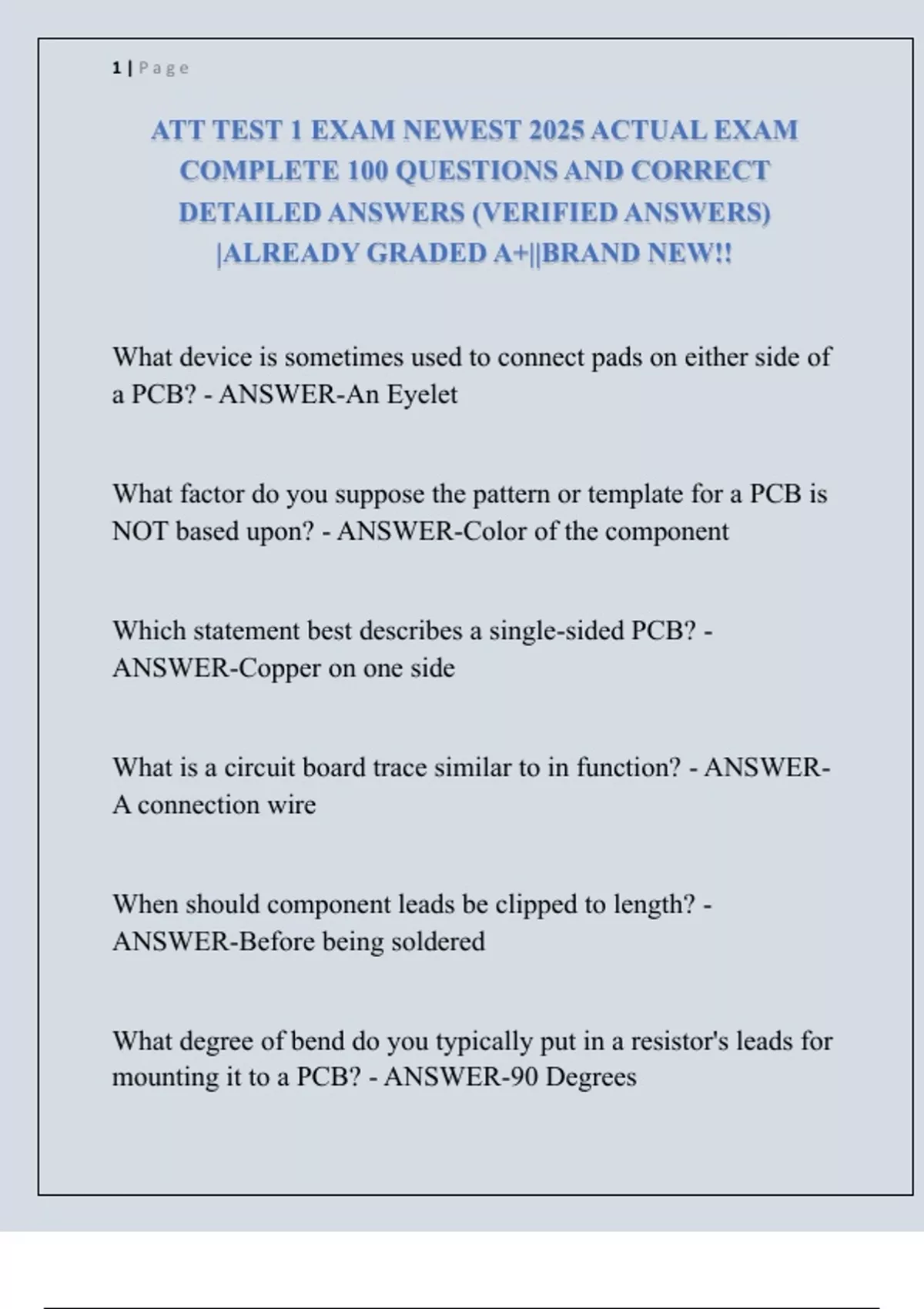

1|Page
ATT TEST 1 EXAM NEWEST 2025 ACTUAL EXAM
COMPLETE 100 QUESTIONS AND CORRECT
DETAILED ANSWERS (VERIFIED ANSWERS)
|ALREADY GRADED A+||BRAND NEW!!
What device is sometimes used to connect pads on either side of
a PCB? - ANSWER-An Eyelet
What factor do you suppose the pattern or template for a PCB is
NOT based upon? - ANSWER-Color of the component
Which statement best describes a single-sided PCB? -
ANSWER-Copper on one side
What is a circuit board trace similar to in function? - ANSWER-
A connection wire
When should component leads be clipped to length? -
ANSWER-Before being soldered
What degree of bend do you typically put in a resistor's leads for
mounting it to a PCB? - ANSWER-90 Degrees
,2|Page
Which of the following tools should be used for bending
component leads? - ANSWER-Rounded needle nose pliers
What type of repair is an eyelet typically used for? - ANSWER-
Missing pad repair
What tool may be required to remove solder from plated-
through hole? - ANSWER-Heat/Vacuum tool
What determines the method of component replacement on a
printed circuit board? - ANSWER-The original installation
method
Which of the following materials would NOT be used as
baseboard for a PCB? - ANSWER-Cardboard
what is copper conductor around a PCB drill hole usually
called? - ANSWER-A Pad
Which of the following tools should be used to remove solder
from a connection? - ANSWER-A solder vacuum
, 3|Page
Why should a component lead not be bent right at the lead/body
junction? - ANSWER-This bend mechanically stresses the
component
What is the minimum distance a lead bend should be kept away
from a component body? - ANSWER-1/8"
What is the ideal maximum time to form a solder connection? -
ANSWER-2 Seconds
What is the preferred method of repairing a lifted trace? -
ANSWER-Overbonding
What is wrong when the solder has been removed from a
straight-through connection, but the component will not release?
- ANSWER-The lead is sweated to the connector
A complex circuit is solved by - ANSWER-Using Kirchhoff's
Laws and Ohm's Laws
