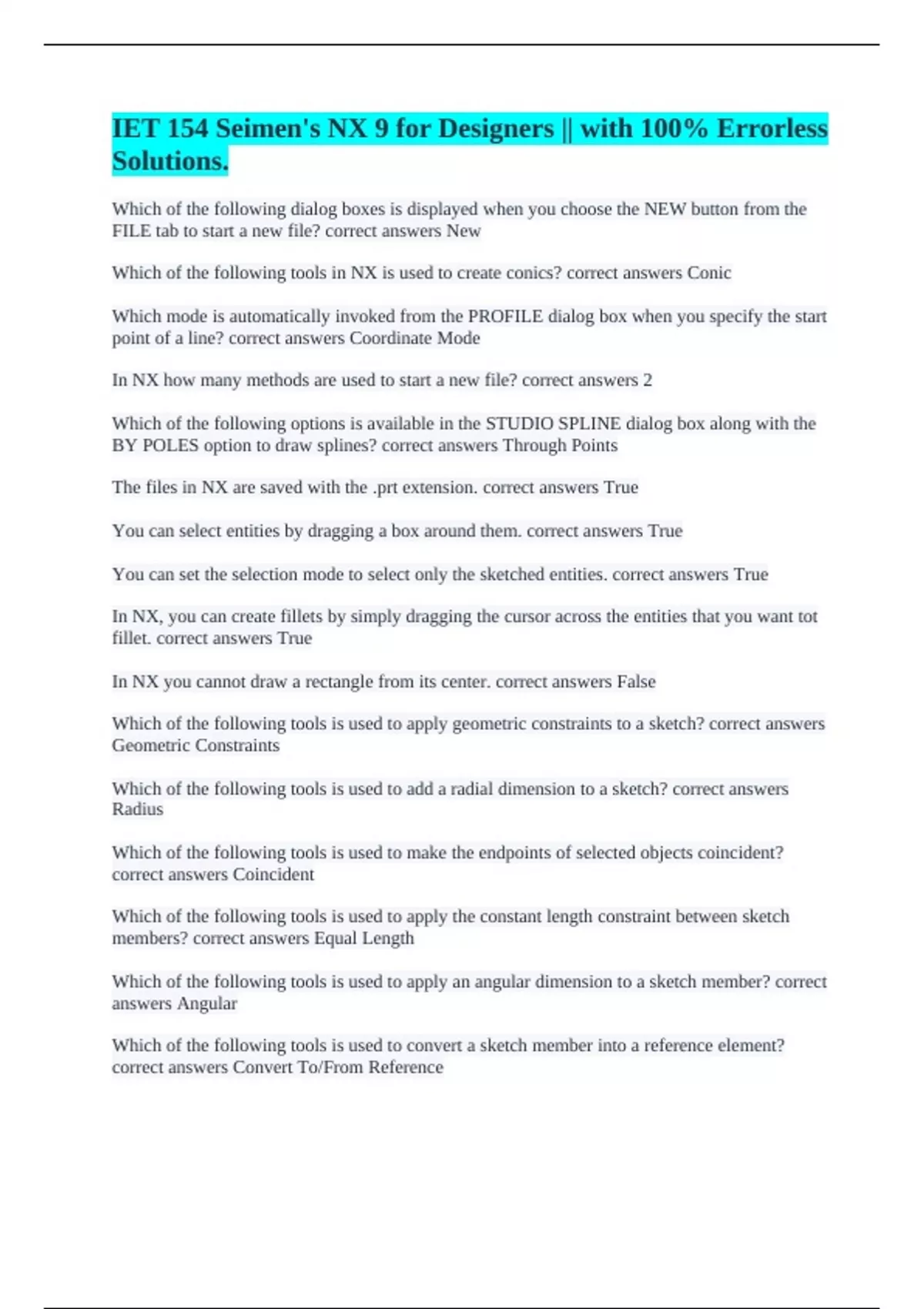

IET 154 Seimen's NX 9 for Designers || with 100% Errorless
Solutions.
Which of the following dialog boxes is displayed when you choose the NEW button from the
FILE tab to start a new file? correct answers New
Which of the following tools in NX is used to create conics? correct answers Conic
Which mode is automatically invoked from the PROFILE dialog box when you specify the start
point of a line? correct answers Coordinate Mode
In NX how many methods are used to start a new file? correct answers 2
Which of the following options is available in the STUDIO SPLINE dialog box along with the
BY POLES option to draw splines? correct answers Through Points
The files in NX are saved with the .prt extension. correct answers True
You can select entities by dragging a box around them. correct answers True
You can set the selection mode to select only the sketched entities. correct answers True
In NX, you can create fillets by simply dragging the cursor across the entities that you want tot
fillet. correct answers True
In NX you cannot draw a rectangle from its center. correct answers False
Which of the following tools is used to apply geometric constraints to a sketch? correct answers
Geometric Constraints
Which of the following tools is used to add a radial dimension to a sketch? correct answers
Radius
Which of the following tools is used to make the endpoints of selected objects coincident?
correct answers Coincident
Which of the following tools is used to apply the constant length constraint between sketch
members? correct answers Equal Length
Which of the following tools is used to apply an angular dimension to a sketch member? correct
answers Angular
Which of the following tools is used to convert a sketch member into a reference element?
correct answers Convert To/From Reference
, While measuring an angular dimension, you can display a major or minor dimension. correct
answers True
The DIRECT SKETCH group contains all tools required to draw a sketch. correct answers True
The SKETCH tool in the HOME tab is used to exit the Sketch environment. correct answers
false
The FINISH SKETCH tool in the HOME tab is used to exit the Sketch environment. correct
answers True
Which of the following tools in NX allows you to dynamically move, rotate, or copy the solid
objects and the sketched entities? correct answers Move Object
Which one of the following views is the default view in NX? correct answers Trimetric
Which one of the following rollouts is used to create a thing extruded feature by offsetting the
sketch in two directions? correct answers Offset
Which one of the following paths is used to invoke the MOVE Object tool? correct answers
Edit>Move Object
Which one of the following rules is used to determine the direction of revolution? correct
answers Right-hand thumb rule
In which of the following groups, you can set the display modes for solid models? correct
answers View
If you choose FINISH SKETCH tool form the DIRECT SKETCH group to exit the Sketch
environment, the modeling environment will be invoked. correct answers True
When you mirror various entities using the MIRROR CURVE tool by default a mirrored copy of
the selected entities is created and the original entities are deleted. correct answers False
In the RESULTS rollout of the MOVE OBJECT dialog box, you can specify whether you want
to move the original entity or its copy by using the MOVE ORIGINAL or COPY ORIGINAL
radio button. correct answers True
You can rotate a model in 3D space using the ROTATE tool. correct answers True
Which of the following tools allows you to create additional datum planes? correct answers
Datum Plane
Which of the following options in the INSERT menu allows you to project existing entities on
the current sketching plane? correct answers Project Curve
Solutions.
Which of the following dialog boxes is displayed when you choose the NEW button from the
FILE tab to start a new file? correct answers New
Which of the following tools in NX is used to create conics? correct answers Conic
Which mode is automatically invoked from the PROFILE dialog box when you specify the start
point of a line? correct answers Coordinate Mode
In NX how many methods are used to start a new file? correct answers 2
Which of the following options is available in the STUDIO SPLINE dialog box along with the
BY POLES option to draw splines? correct answers Through Points
The files in NX are saved with the .prt extension. correct answers True
You can select entities by dragging a box around them. correct answers True
You can set the selection mode to select only the sketched entities. correct answers True
In NX, you can create fillets by simply dragging the cursor across the entities that you want tot
fillet. correct answers True
In NX you cannot draw a rectangle from its center. correct answers False
Which of the following tools is used to apply geometric constraints to a sketch? correct answers
Geometric Constraints
Which of the following tools is used to add a radial dimension to a sketch? correct answers
Radius
Which of the following tools is used to make the endpoints of selected objects coincident?
correct answers Coincident
Which of the following tools is used to apply the constant length constraint between sketch
members? correct answers Equal Length
Which of the following tools is used to apply an angular dimension to a sketch member? correct
answers Angular
Which of the following tools is used to convert a sketch member into a reference element?
correct answers Convert To/From Reference
, While measuring an angular dimension, you can display a major or minor dimension. correct
answers True
The DIRECT SKETCH group contains all tools required to draw a sketch. correct answers True
The SKETCH tool in the HOME tab is used to exit the Sketch environment. correct answers
false
The FINISH SKETCH tool in the HOME tab is used to exit the Sketch environment. correct
answers True
Which of the following tools in NX allows you to dynamically move, rotate, or copy the solid
objects and the sketched entities? correct answers Move Object
Which one of the following views is the default view in NX? correct answers Trimetric
Which one of the following rollouts is used to create a thing extruded feature by offsetting the
sketch in two directions? correct answers Offset
Which one of the following paths is used to invoke the MOVE Object tool? correct answers
Edit>Move Object
Which one of the following rules is used to determine the direction of revolution? correct
answers Right-hand thumb rule
In which of the following groups, you can set the display modes for solid models? correct
answers View
If you choose FINISH SKETCH tool form the DIRECT SKETCH group to exit the Sketch
environment, the modeling environment will be invoked. correct answers True
When you mirror various entities using the MIRROR CURVE tool by default a mirrored copy of
the selected entities is created and the original entities are deleted. correct answers False
In the RESULTS rollout of the MOVE OBJECT dialog box, you can specify whether you want
to move the original entity or its copy by using the MOVE ORIGINAL or COPY ORIGINAL
radio button. correct answers True
You can rotate a model in 3D space using the ROTATE tool. correct answers True
Which of the following tools allows you to create additional datum planes? correct answers
Datum Plane
Which of the following options in the INSERT menu allows you to project existing entities on
the current sketching plane? correct answers Project Curve
