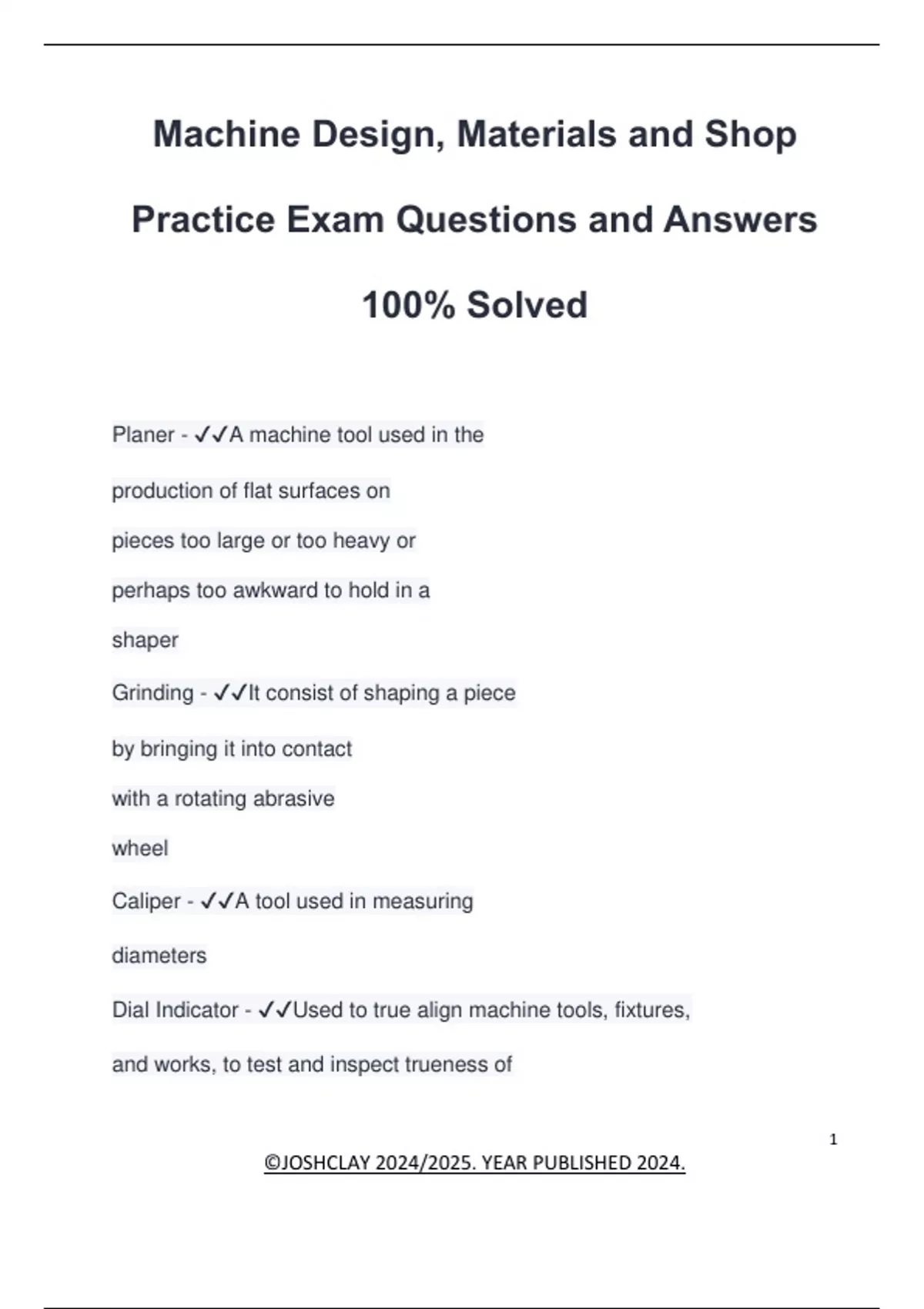

Machine Design, Materials and Shop
Practice Exam Questions and Answers
100% Solved
Planer - ✔✔A machine tool used in the
production of flat surfaces on
pieces too large or too heavy or
perhaps too awkward to hold in a
shaper
Grinding - ✔✔It consist of shaping a piece
by bringing it into contact
with a rotating abrasive
wheel
Caliper - ✔✔A tool used in measuring
diameters
Dial Indicator - ✔✔Used to true align machine tools, fixtures,
and works, to test and inspect trueness of
1
©JOSHCLAY 2024/2025. YEAR PUBLISHED 2024.
,finished work, and to compare
measurement either heights or depths or
many other measurement
Plasticity - ✔✔The ability of the metal to be deformed
considerably without rupture
Laying out - ✔✔The shop term used to include the marking
of inscribing of center points, circle, arcs, or
straight line upon metal surfaces, either
curved or flat, for the guidance of the
worker
Reaming - ✔✔An operation of sizing and finishing a hole
by means of a cutting tool having several
cutting edges
Countersinking - ✔✔The operation of making a cone shaped
enlargement of the end of a hole, as for a
recess for a flat head screw
Boring - ✔✔The operation of enlarging a hole by means
of an adjustable cutting tool with only one
cutting edge
2
©JOSHCLAY 2024/2025. YEAR PUBLISHED 2024.
,Pitch Circle - ✔✔An imaginary circle passing through the
points at which the teeth of the meshing
gears contact each other
Carriage Bolt - ✔✔A type of bolt used in bolting wooden parts
together or wood to metal. It has a portion
of a shank just underneath a round head,
which is designed to keep the bolt from
turning in the wood when the nut is tightened
Diametral Pitch - ✔✔The number of teeth per inch of pitch
diameter and which gives some indications
of the gear teeth
Circular Pitch - ✔✔The distance from the center of one tooth of
a gear the center of the next consecutive
tooth measured of the pitch
Addendum - ✔✔The portion of the gear tooth that projects
above or outside the pitch circle
Deddendum - ✔✔The portion of the gear tooth space that is
cut below the pitch circle and is equal to the
addendum plus the clearance
3
©JOSHCLAY 2024/2025. YEAR PUBLISHED 2024.
, Gear Rack - ✔✔When meshed with a gear it is used to
change rotary motion to reciprocating
motion
Worm Gear - ✔✔A kind of gears for heavy duty works where
a large ratio of speed is required and are
extensively used in speed reducers
Bevel Gear - ✔✔A kind of gear to transmit motion from one
shaft to another shaft at an angle to the first
Normalizing - ✔✔The uniform heating of steel above the usual
hardening temperatures, followed by
cooling freely in air
Quenching - ✔✔The operation of cooling a heated piece of
work rapidly by dipping it in water, brine or
oil
Annhealing - ✔✔A method in softening a piece of metal that is
too hard to machine and is done by heating steel
slowly above the usual hardening temperature
keeping it at the heat for ½ to 2 hours then
cooling slowly, preferably in a furnace
4
©JOSHCLAY 2024/2025. YEAR PUBLISHED 2024.
