10/22/24, 10:09 PM ATT TEST 8 EXAM LATEST 2024 ACTUAL EXAM 100 QUESTIONS AND CORRECT DETAILED ANSWERS WITH RATIONALE…

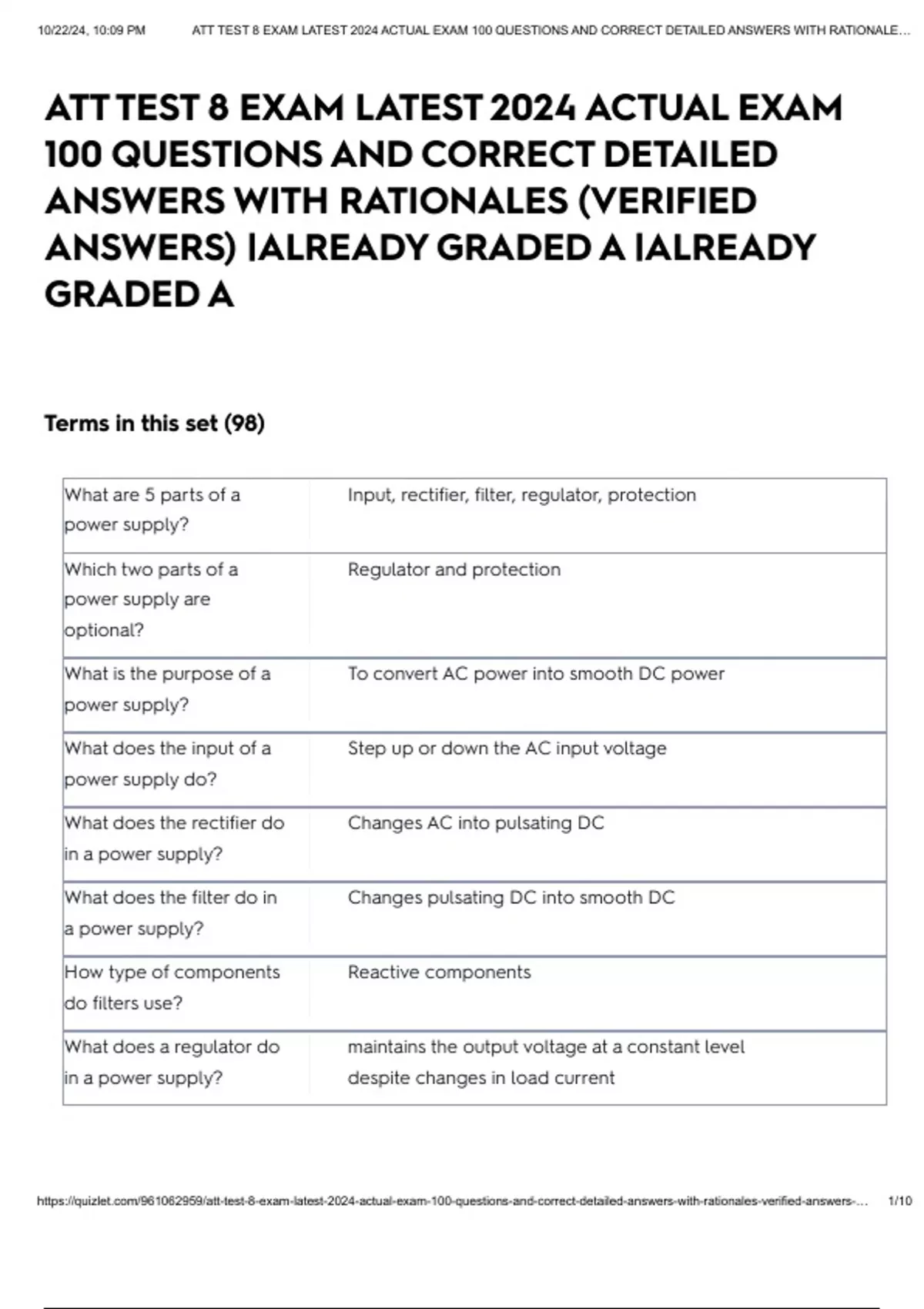

ATT TEST 8 EXAM LATEST 2024 ACTUAL EXAM
100 QUESTIONS AND CORRECT DETAILED
ANSWERS WITH RATIONALES (VERIFIED
ANSWERS) |ALREADY GRADED A |ALREADY
GRADED A
Terms in this set (98)
What are 5 parts of a Input, rectifier, filter, regulator, protection
power supply?
Which two parts of a Regulator and protection
power supply are
optional?
What is the purpose of a To convert AC power into smooth DC power
power supply?
What does the input of a Step up or down the AC input voltage
power supply do?
What does the rectifier do Changes AC into pulsating DC
in a power supply?
What does the filter do in Changes pulsating DC into smooth DC
a power supply?
How type of components Reactive components
do filters use?
What does a regulator do maintains the output voltage at a constant level
in a power supply? despite changes in load current
https://quizlet.com/961062959/att-test-8-exam-latest-2024-actual-exam-100-questions-and-correct-detailed-answers-with-rationales-verified-answers-… 1/10
, 10/22/24, 10:09 PM ATT TEST 8 EXAM LATEST 2024 ACTUAL EXAM 100 QUESTIONS AND CORRECT DETAILED ANSWERS WITH RATIONALE…
What does the protection Prevents damage to power supply if load becomes
circuit do in power faulty, limits or disables output
supply?
The half wave rectifier is Series limiter
the same as what circuit?
Which rectifier is the least Half-wave
efficient using only half
the input?
Which two rectifiers Full-wave and bridge
require two input signals
180 degrees out of phase?
Which rectifier uses a Full wave
center tapped
transformer?
How is frequency Output frequency is same as input frequency
determined for half wave
rectifier?
How is frequency Output is twice the input frequency
determined for full wave
rectifier?
How is frequency Output is twice the input frequency
determined for bridge
rectifier?
What is the purpose of To adjust voltage drop to maintain V out at constant
series voltage regulators? level
In a series voltage Load current decreases OR DC input increases
regulator, V out
INCREASES when what
happens?
In series voltage regulator, Load current increases OR DC input decreases
V out DECREASES when
what happens?
https://quizlet.com/961062959/att-test-8-exam-latest-2024-actual-exam-100-questions-and-correct-detailed-answers-with-rationales-verified-answers-… 2/10
