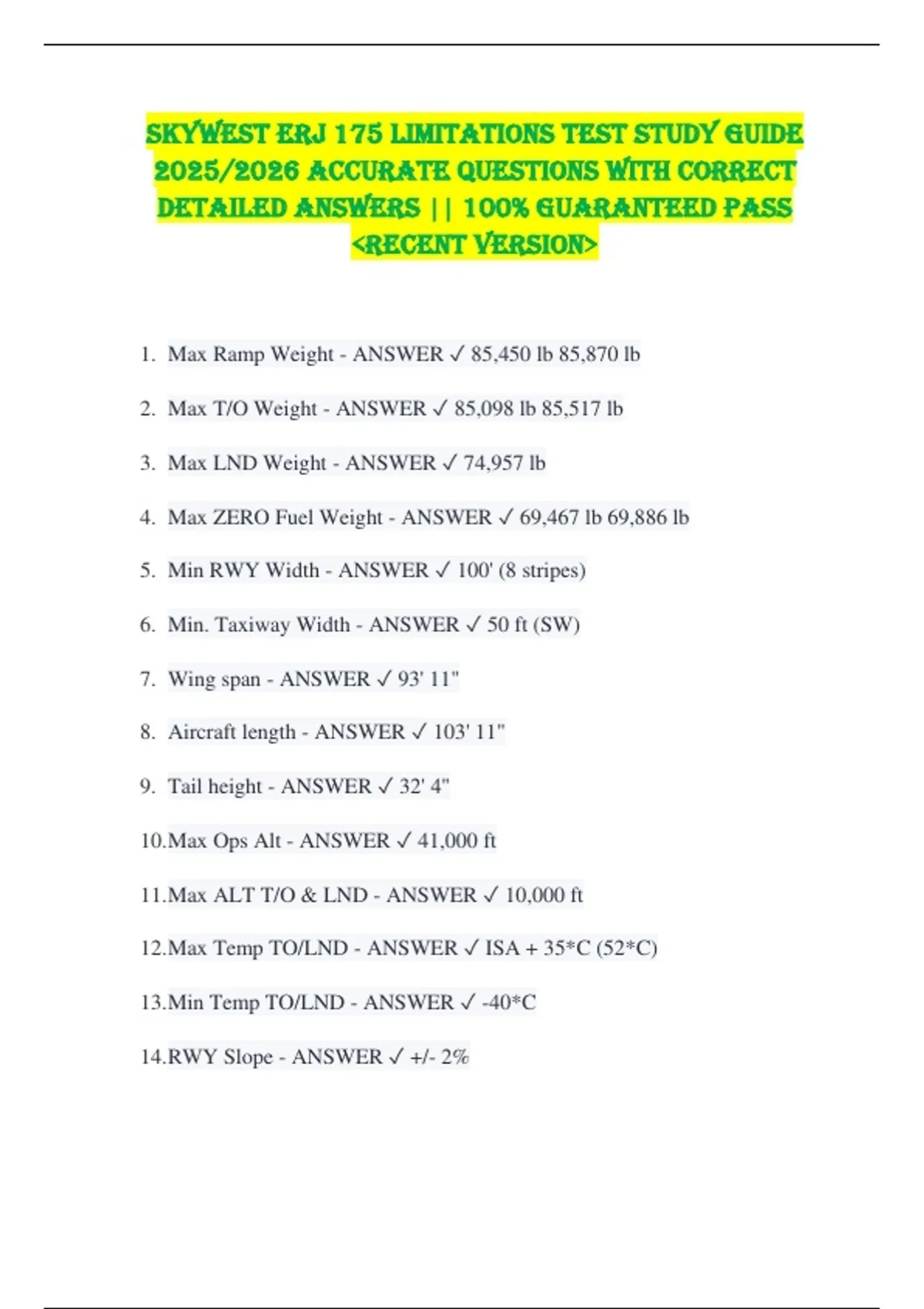

Skywest ERJ 175 Limitations TEST STUDY GUIDE
2025/2026 ACCURATE QUESTIONS WITH CORRECT
DETAILED ANSWERS || 100% GUARANTEED PASS
<RECENT VERSION>
1. Max Ramp Weight - ANSWER ✓ 85,450 lb 85,870 lb
2. Max T/O Weight - ANSWER ✓ 85,098 lb 85,517 lb
3. Max LND Weight - ANSWER ✓ 74,957 lb
4. Max ZERO Fuel Weight - ANSWER ✓ 69,467 lb 69,886 lb
5. Min RWY Width - ANSWER ✓ 100' (8 stripes)
6. Min. Taxiway Width - ANSWER ✓ 50 ft (SW)
7. Wing span - ANSWER ✓ 93' 11"
8. Aircraft length - ANSWER ✓ 103' 11"
9. Tail height - ANSWER ✓ 32' 4"
10.Max Ops Alt - ANSWER ✓ 41,000 ft
11.Max ALT T/O & LND - ANSWER ✓ 10,000 ft
12.Max Temp TO/LND - ANSWER ✓ ISA + 35*C (52*C)
13.Min Temp TO/LND - ANSWER ✓ -40*C
14.RWY Slope - ANSWER ✓ +/- 2%
,15.Max Tailwind - ANSWER ✓ 15 KTS
16.Max 1 Pack Opperations - ANSWER ✓ 31,000 ft
17.Cargo fire detection/protection - ANSWER ✓ 3 smoke detectors fwd, 2 aft
One high rate, one low rate
60 min diversion time, 75 min total time
18.Cargo Logic - ANSWER ✓ Rule of 3
Always 1 press
Add one if unannunciated
Add one if on ground for low rate
19.Flight control EPBIT - ANSWER ✓ 3 min to complete
Starts any ac source
3 interruptions
Hydraulic pump
Flight control mode panel
Ac interrupted
20.Flight control high level - ANSWER ✓ Aoa
Thrust comp
Yaw damper
Rudder schedule
Roll spoilers
Config changes
21.Max spoiler limits - ANSWER ✓ 180 kias
Flaps 1
TLA > 70 deg
22.Pitch trim priority - ANSWER ✓ Backup
CA
FO
23.Hydraulic ACMP Logic - ANSWER ✓ On ground
Flaps > 0 and
Thrust toga or gs > 50 it's
, ACMP 2 single engine taxi park brake released or set less than 6 min
In flight
EDP failure
Flaps > 0
ACMP 3b only in flight
24.Hydraulic PTU logic - ANSWER ✓ Flaps or gear not up
No wow
EDP 1 not failed
Hydraulic reservoir quantity > 12%
25.Reserve fuel - ANSWER ✓ 45 min at TOD fuel flow
Never less than 2450
26.Hold fuel and contingency - ANSWER ✓ Landing weight at 10000 feet afe
27.Thrust settings change - ANSWER ✓ GA - Flaps > 0 gear down
CLB - gear up, > 400 agl, change vert mode
CRZ - at preselected altitude within 5 it's or 0.01 mach
CON - engine failure > 3000 feet or manually selected
28.Single engine taxi is not authorized when: - ANSWER ✓ Contamination
Maneuvering room
Taxi less than 5 min
Airport regs
Risk of injury
CA discretion
29.Taxi speeds - ANSWER ✓ 30/10/10/5
30 straight and dry
10 turns dry
10 straight wet/cont
5 turns wet/cont
30.Max N1 taxi - ANSWER ✓ 40%
, 31.Green dot - ANSWER ✓ 1.3 g over shaker 40 deg bank
Single engine driftdown
Ideal flap extension
Emergency approach speed
Plus 10 f bug
Vx speed
Plus 50 vy speed
32.EICAS QRH order - ANSWER ✓ Warning
Electric bus
Mau
33.Trend tapes - ANSWER ✓ Airspeed 10 sec
Altitude 6 sec
34.Fuel tanks - ANSWER ✓ Collector tank
Main tank
Surge tank
35.Fuel pumps - ANSWER ✓ 2 ACMP
2 ejector pumps
6 scavenge pumps
1 dc pump right collector
36.ACMP Logic - ANSWER ✓ Onside engine start
Xside during xfeed
Apu if no engine 2
Backup in case of ejector fail
37.Fuel color codes - ANSWER ✓ One
Red 660
Amber 1320
Combined
Red 1320
Amber 2640
38.RAT powers - ANSWER ✓ 3/2/2/1
